T-TOP81-160-160-2.0

Active

Shiu Li Technology Co., Ltd.

THERM PAD 160MMX160MM PURP

Search across all available documentation for this part.

Active

Shiu Li Technology Co., Ltd.

THERM PAD 160MMX160MM PURP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T-TOP81-160-160-2.0	T-TOP81 Series

Adhesive	Tacky - Both Sides	Tacky - Both Sides
Color	Purple	Purple
Material	Silicone	Silicone
Outline [x]	160 mm	160 mm
Outline [y]	160 mm	160 mm
Shape	Square	Square
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Thermal Conductivity	8 W/m-K	8 W/m-K
Thickness	0.079 in	0.02 - 0.118 in
Thickness	2 mm	0.508 - 3 mm
Type	Gap Filler Pad, Sheet	Gap Filler Pad, Sheet
Usage	Thermally Conductive	Thermally Conductive

THERM PAD 160MMX160MM PURP

Part	Outline [x]	Outline [y]	Thickness	Thickness	Usage	Thermal Conductivity	Type	Shape	Storage/Refrigeration Temperature	Adhesive	Color	Shelf Life Start	Shelf Life	Material
Shiu Li Technology Co., Ltd. T-TOP81-160-160-0.5	160 mm	160 mm	0.508 mm	0.02 in	Thermally Conductive	8 W/m-K	Gap Filler Pad, Sheet	Square	Room Temperature	Tacky - Both Sides	Purple	Date of Shipment	120 Months	Silicone
Shiu Li Technology Co., Ltd. T-TOP81-160-160-2.0	160 mm	160 mm	2 mm	0.079 in	Thermally Conductive	8 W/m-K	Gap Filler Pad, Sheet	Square	Room Temperature	Tacky - Both Sides	Purple	Date of Shipment	120 Months	Silicone
Shiu Li Technology Co., Ltd. T-TOP81-160-160-1.0	160 mm	160 mm	0.991 mm	0.039 in	Thermally Conductive	8 W/m-K	Gap Filler Pad, Sheet	Square	Room Temperature	Tacky - Both Sides	Purple	Date of Shipment	120 Months	Silicone
Shiu Li Technology Co., Ltd. T-TOP81-160-160-1.5	160 mm	160 mm	1.5 mm	0.0591 "	Thermally Conductive	8 W/m-K	Gap Filler Pad, Sheet	Square	Room Temperature	Tacky - Both Sides	Purple	Date of Shipment	120 Months	Silicone
Shiu Li Technology Co., Ltd. T-TOP81-160-160-3.0	160 mm	160 mm	3 mm	0.118 in	Thermally Conductive	8 W/m-K	Gap Filler Pad, Sheet	Square	Room Temperature	Tacky - Both Sides	Purple	Date of Shipment	120 Months	Silicone
Shiu Li Technology Co., Ltd. T-TOP81-160-160-2.5	160 mm	160 mm	2.489 mm	0.098 in	Thermally Conductive	8 W/m-K	Gap Filler Pad, Sheet	Square	Room Temperature	Tacky - Both Sides	Purple	Date of Shipment	120 Months	Silicone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

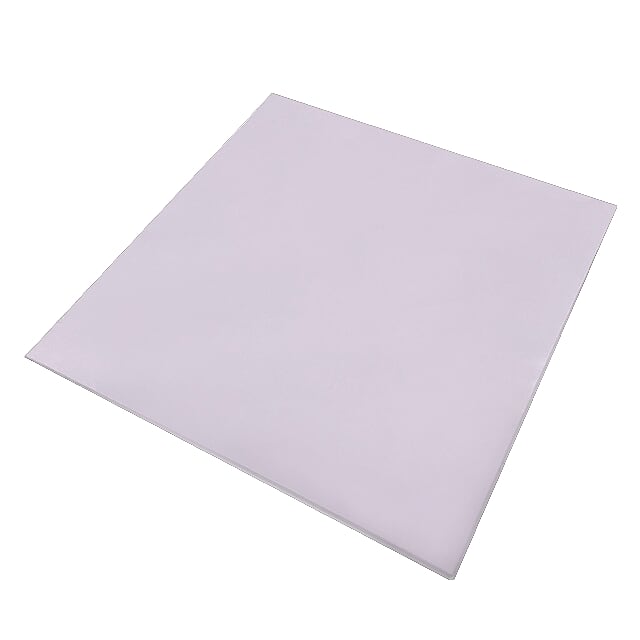

Thermal Pad Purple 160.00mm x 160.00mm Square Tacky - Both Sides

Technical documentation and resources

No documents available
