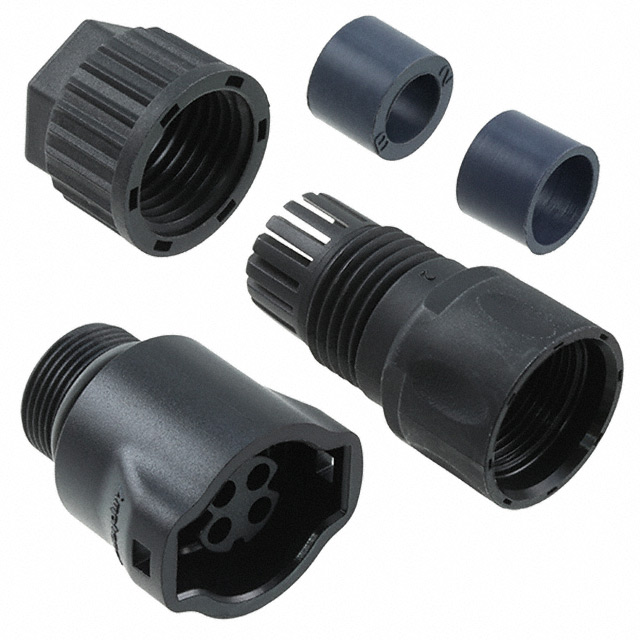

CB-04BFFC-RL7001

Active

Amphenol LTW

CONN RCPT HSNG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT HSNG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	CB-04BFFC-RL7001

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock, Snap-In
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Modified Polyphenylene Ether (mPPE)
Shell Size - Insert	C
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Material	Contact Shape	Features	Type	Fastening Type	Ingress Protection	Contact Size	Shell Size - Insert	Number of Positions	Note	Mounting Type	Orientation	Shielding	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Housing Color	Material Flammability Rating
Amphenol LTW CB-04BFFC-RL7001	Modified Polyphenylene Ether (mPPE)	Circular	Backshell	For Female Sockets	Latch Lock Snap-In	IP67 - Dust Tight Waterproof	16	C	4	Contacts Not Included	Free Hanging (In-Line)	Keyed	Unshielded	Crimp	-40 °C	105 ░C	Receptacle Housing	Black	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.55

General part information

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
