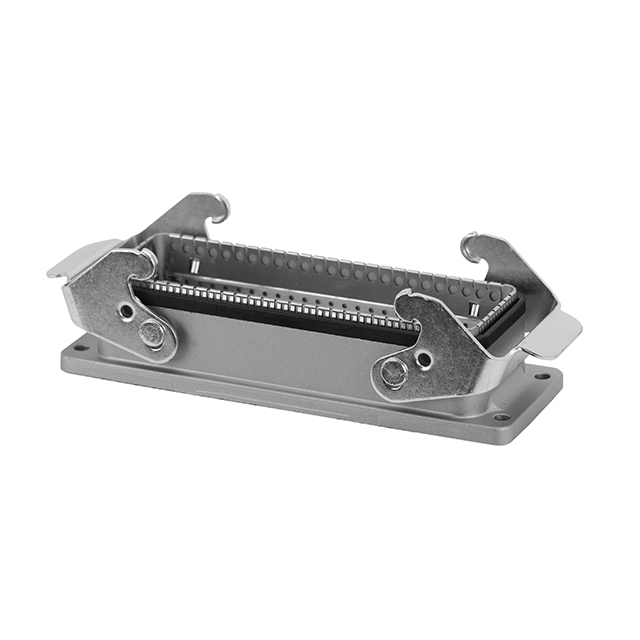

C146 11F024 902 8

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE24

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE24

Technical Specifications

Parameters and characteristics for this part

Specification	C146 11F024 902 8

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	140 mm
Size / Dimension [x]	5.512 "
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	1.193 "
Size / Dimension [z]	30.3 mm
Style	Bottom Entry

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Style	Housing Finish	Ingress Protection	Lock Location	Connector Type	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size
Amphenol Tuchel Industrial C146 11F024 000 8	48 mm	1.311 "	33.3 mm	140 mm	1.89 in	5.512 "	Bottom Entry	EMC Coating	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Base - Panel Mount	Gray	125 °C	-40 °C	Aluminum Die Cast	E24
Amphenol Tuchel Industrial C146 11F024 902 8	48 mm	1.193 "	30.3 mm	140 mm	1.89 in	5.512 "	Bottom Entry	EMC Coating	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Base - Panel Mount	Gray	125 °C	-40 °C	Aluminum Die Cast	E24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 27.45

General part information

Base - Panel Mount Connector Bottom Entry E24 IP65 - Dust Tight, Water Resistant
