0137516G100

Active

Essentra Components

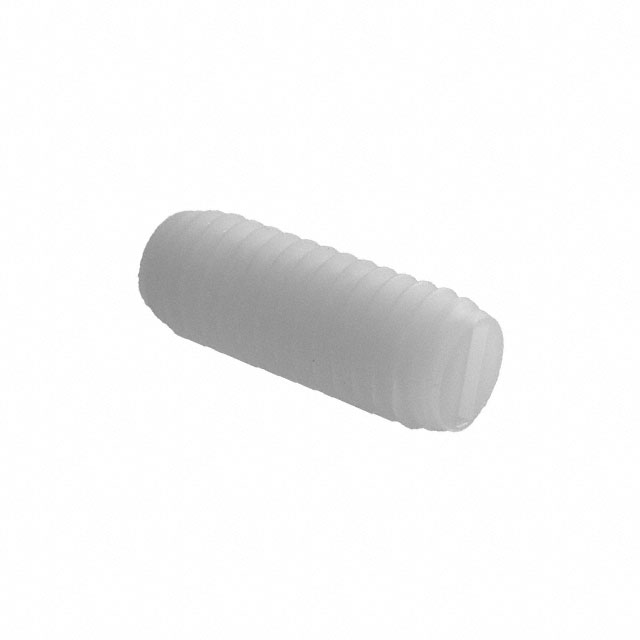

SET SCREW SLOTTED HEAD 3/8-16 TH

Search across all available documentation for this part.

Active

Essentra Components

SET SCREW SLOTTED HEAD 3/8-16 TH

Technical Specifications

Parameters and characteristics commom to parts in this series

SET SCREW SLOTTED HEAD 3/8-16

Part	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Drive Type	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Head Height	Head Height	Material	Length - Overall	Length - Overall
Essentra Components 0137516G075	0.75 in	19.05 mm	0.75 in	Slotted	0.65 in	16.51 mm	3/8"-16	0.1 in	2.54 mm	Nylon
Essentra Components 0137516G100				Slotted	0.9 in	22.86 mm	3/8"-16	0.1 in	2.54 mm	Nylon	25.4 mm	1 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3/8"-16 Slotted Drive Nylon
