1411141

Active

Phoenix Contact

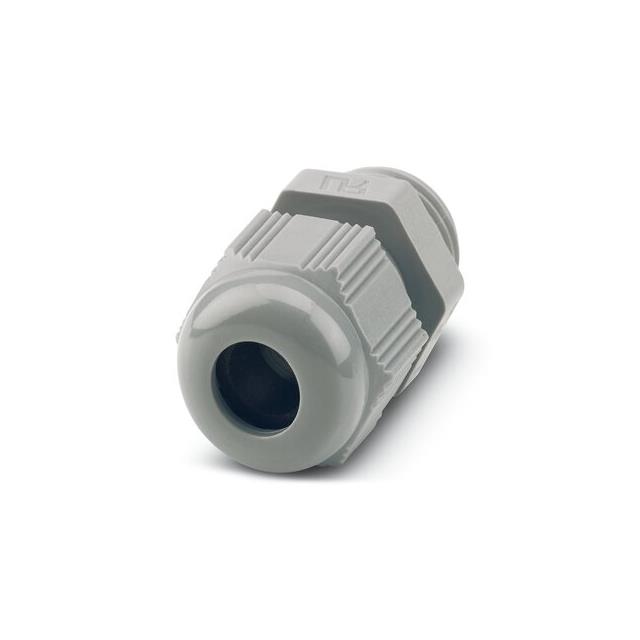

CABLE GLAND 4-8MM PG9 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-8MM PG9 POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411141	G-INS-PG9 Series

Color	Gray	Gray, Silver, Black
Includes	Seal	Seal, O-Ring
Ingress Protection	IP66/IP68	IP66/IP68, IP66, IP68, IP69, IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm	4 mm
Thread Length	8 mm	6 - 8 mm
Thread Length	0.315 in	0.236 - 0.315 in
Thread Size	PG9	PG9
Type	Cable Gland	Cable Gland

CABLE GLAND 4-8MM PG9 POLYAMIDE

Part	Ingress Protection	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Thread Length	Thread Length	Color	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Material
Phoenix Contact 1411141	IP66/IP68	Seal	0.157 in	4 mm	PG9	8 mm	0.315 in	Gray	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	Polyamide (PA), Nylon
Phoenix Contact 1411171	IP66, IP68, IP69	O-Ring, Seal	0.157 in	4 mm	PG9	6 mm	0.236 in	Silver	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	Brass, Nickel Plated
Phoenix Contact 1424486	IP68 - Dust Tight, Waterproof	Seal	0.157 in	4 mm	PG9	8 mm	0.315 in	Gray	100 °C	-20 C	8 mm	0.315 in	Cable Gland	Polyamide (PA), Nylon
Phoenix Contact 1424496	IP68 - Dust Tight, Waterproof	Seal	0.157 in	4 mm	PG9	8 mm	0.315 in	Black	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	Polyamide (PA), Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG9 Gray
