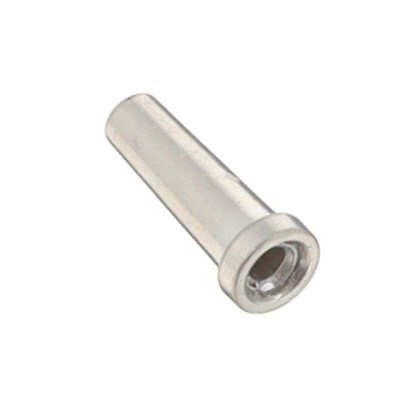

1065-0-15-80-30-84-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

1065-0-15-80-30-84-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1065-0-15-80-30-84-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall	4.83 mm
Length - Overall	0.19 in
Mounting Hole Diameter [diameter]	0.055 in
Mounting Hole Diameter [diameter]	1.4 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	3.3 mm
Socket Depth	0.13 in
Tail Type	No Tail
Termination	Solder

1065-0 Series

Part	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Tail Type	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 1065-0-15-80-30-27-10-0	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	-55 °C	125 °C	4.83 mm	0.19 in	3.3 mm	0.13 in	1.83 mm	0.072 in	Solder	0.055 in	1.4 mm	Gold	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 1065-0-15-80-30-14-10-0	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	-55 °C	125 °C	4.83 mm	0.19 in	3.3 mm	0.13 in	1.83 mm	0.072 in	Solder	0.055 in	1.4 mm	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 1065-0-15-01-30-14-10-0	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	-55 °C	125 °C	4.83 mm	0.19 in	3.3 mm	0.13 in	1.83 mm	0.072 in	Solder	0.055 in	1.4 mm	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 1065-0-15-01-30-02-10-0	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	-55 °C	125 °C	4.83 mm	0.19 in	3.3 mm	0.13 in	1.83 mm	0.072 in	Solder	0.055 in	1.4 mm	Tin-Lead	2.54 µm	100 µin
Mill-Max Manufacturing Corp. 1065-0-15-01-30-27-10-0	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	-55 °C	125 °C	4.83 mm	0.19 in	3.3 mm	0.13 in	1.83 mm	0.072 in	Solder	0.055 in	1.4 mm	Gold	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 1065-0-15-80-30-84-10-0	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	-55 °C	125 °C	4.83 mm	0.19 in	3.3 mm	0.13 in	1.83 mm	0.072 in	Solder	0.055 in	1.4 mm	Tin	2.54 µm	100 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.05
		10	$ 0.88
		100	$ 0.79
		1000	$ 0.58
		5000	$ 0.51
		10000	$ 0.48

Description

General part information

1065-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
