RC-1A-DC-1-UL

Active

Switch Components

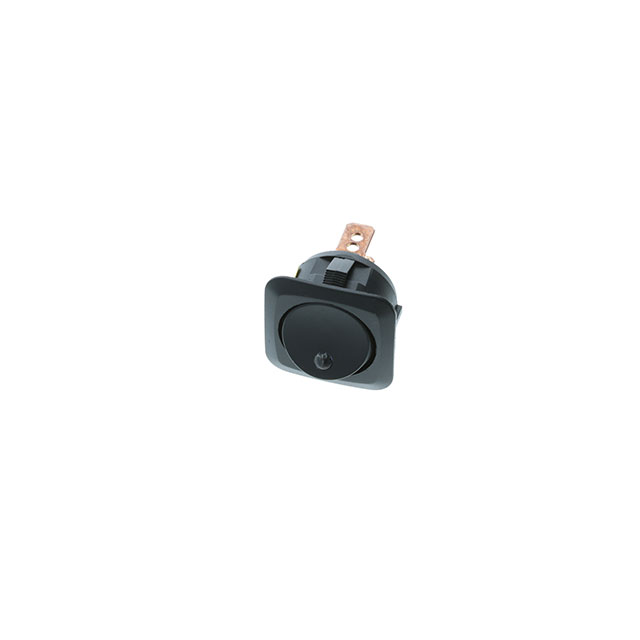

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 25A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RC-1A-DC-1-UL	RC-1A-D Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round - Illuminated	Round - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	25 A	25 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	LED, Blue	Amber, LED, Blue, Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	24 mm	24 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER SPST 25A 12V

Part	Mechanical Life	Termination Style	Current Rating (Amps)	Actuator Type	Illumination Voltage (Nominal)	Mounting Type	Voltage Rating - DC	Actuator Marking	Electrical Life	Switch Function	Color - Actuator/Cap	Circuit	Illumination Type, Color	Panel Cutout Dimensions [diameter]
Switch Components RC-1A-DC-1-AL	10000 Steps	Quick Connect - 0.250" (6.3mm)	25 A	Round - Illuminated	12 VDC	Panel Mount, Snap-In	12 V	No Marking	6000 Cycles	On-Off	Black	SPST	Amber, LED	24 mm
Switch Components RC-1A-DC-1-UL	10000 Steps	Quick Connect - 0.250" (6.3mm)	25 A	Round - Illuminated	12 VDC	Panel Mount, Snap-In	12 V	No Marking	6000 Cycles	On-Off	Black	SPST	Blue, LED	24 mm
Switch Components RC-1A-DC-1-RL	10000 Steps	Quick Connect - 0.250" (6.3mm)	25 A	Round - Illuminated	12 VDC	Panel Mount, Snap-In	12 V	No Marking	6000 Cycles	On-Off	Black	SPST	LED, Red	24 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.15

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In
