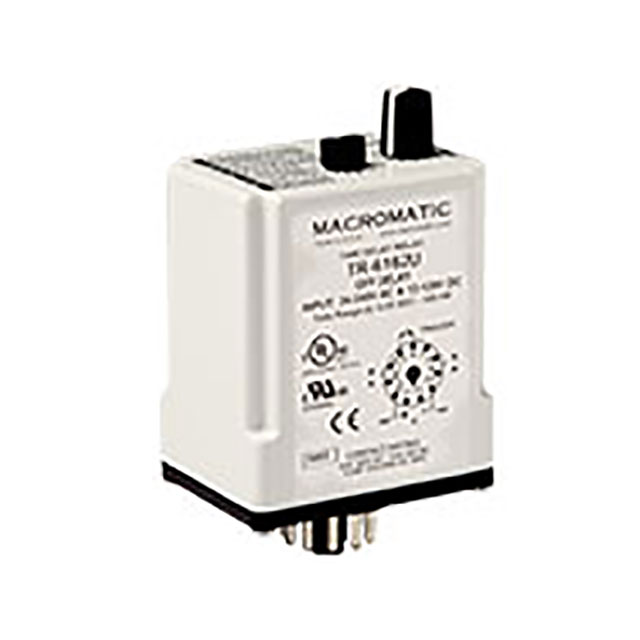

Specification	TR-6162U

Circuit	DPDT (2 Form C)
Contact Rating (Current)	10 A
Delay Time (Maximum)	100 Hrs
Delay Time (Minimum)	0.05 Sec
Function	Off-Delay
Mounting Type	Socketable
Pin Count	11 pins
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage, Trigger Signal
Voltage - Supply (Range 1 Maximum)	240 VAC
Voltage - Supply (Range 1 Minimum)	24 VAC
Voltage - Supply (Range 2 Maximum)	125 V
Voltage - Supply (Range 2 Minimum)	12 VDC
Voltage Rating	30VDC, 240VAC

TR-6162 Series

Part	Timing Adjustment Method	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 1 Minimum)	Mounting Type	Relay Type	Delay Time (Maximum)	Delay Time (Minimum)	Circuit	Function	Voltage Rating	Contact Rating (Current)	Timing Initiate Method	Pin Count	Termination Style
Macromatic Industrial Controls TR-6162U	Hand Dial	125 V	12 VDC	240 VAC	24 VAC	Socketable	Mechanical Relay	100 Hrs	0.05 Sec	DPDT (2 Form C)	Off-Delay	240VAC 30VDC	10 A	Input Voltage Trigger Signal	11 pins	Plug In
