F78SA502
ActiveHoneywell Sensing and Productivity Solutions

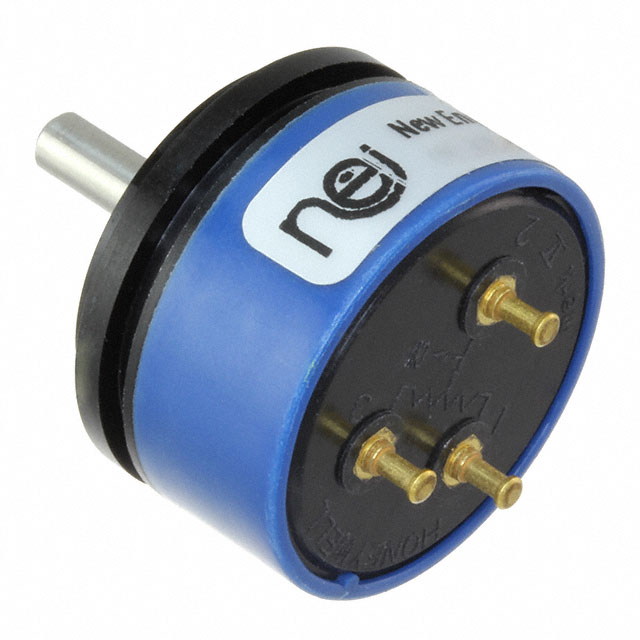

POT 5K OHM 1W PLASTIC LINEAR
F78SA502
ActiveHoneywell Sensing and Productivity Solutions
POT 5K OHM 1W PLASTIC LINEAR
Description
General part information
F78SA Series
5k Ohm 1 Gang Linear Servo Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
Technical Specifications
Parameters and characteristics for this part
| Specification | F78SA502 |
|---|---|
| Actuator Diameter | 3.175 mm |
| Actuator Length | 0.5 in |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Features | Low Torque |
| Mounting Type | Servo Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 1 W |
| Resistance | 5 kOhm |
| Resistive Material | Conductive Plastic |
| Rotation | 360 ° |
| Size - Body Diameter | 0.875 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Turret |
| Tolerance | 10 % |
