IO-A12326-500SP

Active

IO Audio Technologies

CABLE 2COND 23AWG BLK SHLD 500'

Search across all available documentation for this part.

Active

IO Audio Technologies

CABLE 2COND 23AWG BLK SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	IO-A12326-500SP

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Jacket (Insulation) Diameter [diameter]	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
Wire Gauge	23 AWG

CABLE 2COND 23AWG BLK SHLD 500'

Part	Conductor Material	Length [x]	Length [x]	Shield Type	Conductor Insulation	Cable Type	Jacket Color	Shield Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket (Insulation) Material
IO Audio Technologies IO-A12326-500SP	Copper, Tinned	500 '	152.4 m	Braid	Polyethylene (PE)	Multi-Conductor	Black	Aluminum, Copper, Tinned	23 AWG	5.99 mm	0.236 in	2	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

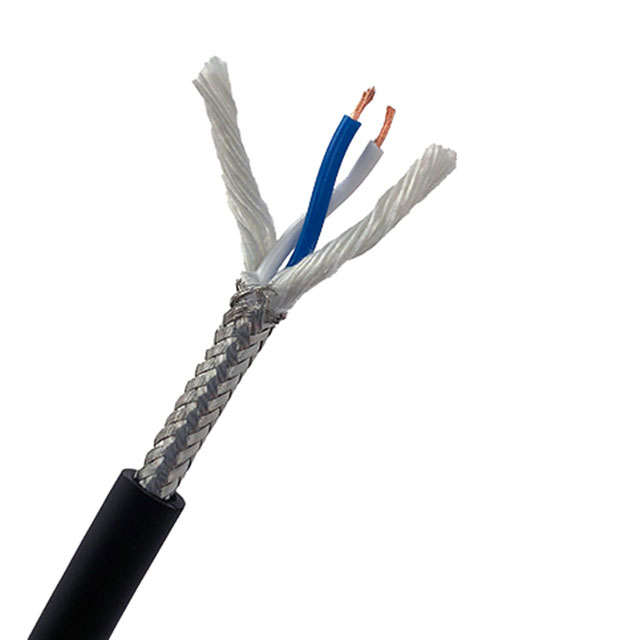

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 23 AWG Braid 500.0' (152.4m)

Technical documentation and resources
