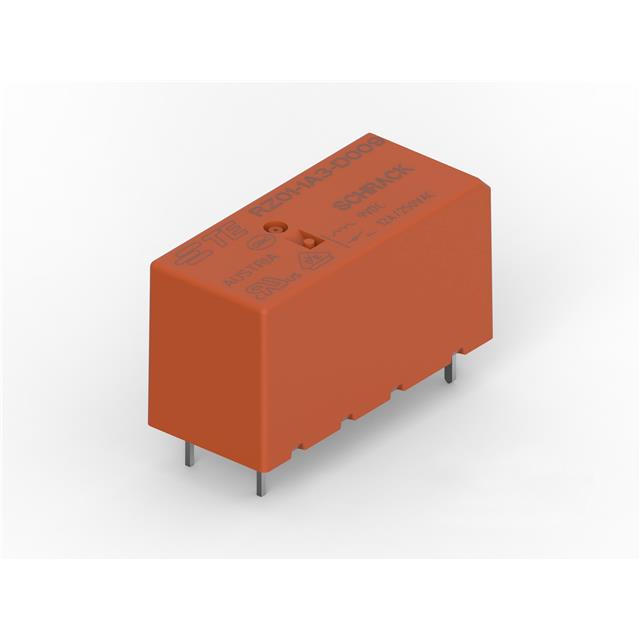

8-1415899-8

Active

TE Connectivity Potter & Brumfield Relays

RZ01-1A3-D009

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RZ01-1A3-D009

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Coil Insulation	Relay Type	Load - Max Switching	Must Release Voltage	Contact Material	Coil Resistance	Release Time	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Switching Voltage [Max]	Contact Rating (Current)	Coil Current	Coil Type	Contact Form	Approval Agency	Mounting Type	Operate Time
TE Connectivity Potter & Brumfield Relays 3-1415899-7	5 VDC	Class F	General Purpose	4800 VA	0.5 VDC	Silver Nickel (AgNi)	60 Ohms	6 ms	PC Pin	85 °C	-40 °C	3.5 VDC	400 VAC	12 A	83.3 mA	Non Latching	SPST-NO (1 Form A)	CQC cURus VDE	Through Hole	8 ms
TE Connectivity Potter & Brumfield Relays 3-1415899-8		Class F	General Purpose	4800 VA	0.6 VDC	Silver Nickel (AgNi)	90 Ohms	6 ms	PC Pin	85 °C	-40 °C	4.2 VDC	400 VAC	12 A	66.7 mA	Non Latching	SPST-NO (1 Form A)	CQC cURus VDE	Through Hole	8 ms
TE Connectivity Potter & Brumfield Relays 8-1415899-8	9 VDC	Class F	General Purpose	4800 VA	0.9 VDC	Silver Tin Oxide (AgSnO)	200 Ohms	6 ms	PC Pin	85 °C	-40 °C	6.3 VDC	400 VAC	12 A	45 mA	Non Latching	SPST-NO (1 Form A)	CQC cURus VDE	Through Hole	8 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3000	$ 1.46

General part information

General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
