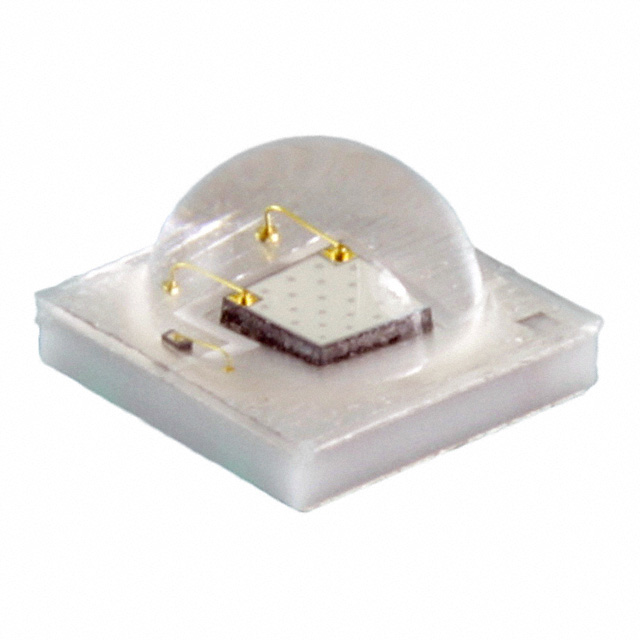

XPEBRY-L1-0000-00L03

Active

Cree LED

XLAMP XP-E LIGHT EMITTING DIODE ROYAL BLUE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPEBRY-L1-0000-00L03

Active

Cree LED

XLAMP XP-E LIGHT EMITTING DIODE ROYAL BLUE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.16
Newark	Each (Supplied on Full Reel)	1000	$ 1.17
		5000	$ 1.12

Description

General part information

XPEBRY Series

LED Lighting Color XLamp® XP-E2 Blue 460nm (455nm ~ 465nm) 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPEBRY-L1-0000-00L03	XPEBRY Series

Color	Blue	Blue
Current - Max [Max]	1 A	1 - 1.2 A
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Luminous Flux @ Current/Temperature	513 mW	463 - 712.5 mW
Luminous Flux @ Current/Temperature	-	475 - 725 mW
Luminous Flux @ Current/Temperature	-	450 - 700 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	SMD	SMD, 1414
Thermal Resistance of Package [diameter]	9 °C/W	9 °C/W
Viewing Angle	135 °	135 °
Voltage - Forward (Vf) (Typ)	3.1 V	2.85 - 3.1 V
Wavelength	460 nm	455 - 460 nm
Wavelength [Max]	465 nm	465 nm
Wavelength [Min]	455 nm	455 nm

XPEBRY Series

XLAMP XP-E LIGHT EMITTING DIODE ROYAL BLUE ROHS COMPLIANT: YES

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Current - Test	Supplier Device Package	Viewing Angle	Mounting Type	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Thermal Resistance of Package [diameter]	Wavelength	Wavelength [Max]	Wavelength [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Cree LED XPEBRY-L1-0000-00L03	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	SMD	135 °	Surface Mount	3535 Metric	1414	3.1 V	1 A	9 °C/W	460 nm	465 nm	455 nm	2.39 mm	0.094 "	513 mW
Cree LED XPEBRY-L1-0000-00J01	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	SMD	135 °	Surface Mount	3535 Metric	1414	3.1 V	1 A	9 °C/W	458 nm			2.39 mm	0.094 "	463 mW	475 mW	450 mW
Cree LED XPEBRY-L1-0000-00T01	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	1414	135 °	Surface Mount	3535 Metric	1414	2.85 V	1.2 A		458 nm			2.39 mm	0.094 "	687.5 mW	700 mW	675 mW
Cree LED XPEBRY-L1-0000-00P03	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	SMD	135 °	Surface Mount	3535 Metric	1414	3.1 V	1 A	9 °C/W	460 nm	465 nm	455 nm	2.39 mm	0.094 "
Cree LED XPEBRY-L1-0000-00U02	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	1414	135 °	Surface Mount	3535 Metric	1414	2.85 V	1.2 A		455 nm			2.39 mm	0.094 "	712.5 mW	725 mW	700 mW
Cree LED XPEBRY-L1-0000-00N01	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	SMD	135 °	Surface Mount	3535 Metric	1414	3.1 V	1 A	9 °C/W	458 nm			2.39 mm	0.094 "	563 mW
Cree LED XPEBRY-L1-0000-00Q01	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	SMD	135 °	Surface Mount	3535 Metric	1414	3.1 V	1 A	9 °C/W	458 nm			2.39 mm	0.094 "	613 mW
Cree LED XPEBRY-L1-R250-00N01	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	SMD	135 °	Surface Mount	3535 Metric	1414	3.1 V	1 A	9 °C/W	458 nm			2.39 mm	0.094 "	563 mW
Cree LED XPEBRY-L1-0000-00K03	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	SMD	135 °	Surface Mount	3535 Metric	1414	3.1 V	1 A	9 °C/W	460 nm	465 nm	455 nm	2.39 mm	0.094 "	488 mW	500 mW	475 mW
Cree LED XPEBRY-L1-0000-00S03	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	350 mA	1414	135 °	Surface Mount	3535 Metric	1414	2.85 V	1.2 A		460 nm			2.39 mm	0.094 "	662.2 mW	675 mW	650 mW
