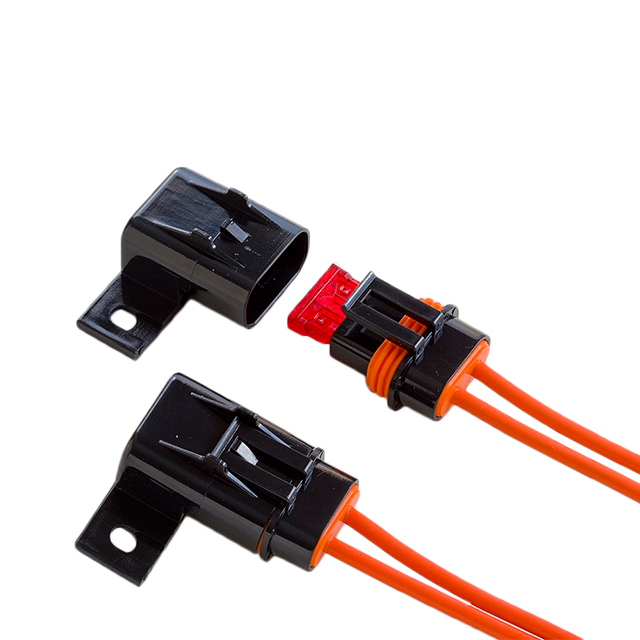

LPR-05B-12OR

Active

OptiFuse

REG. FUSEHOLDER, 30A-12AWG ORG

Search across all available documentation for this part.

Active

OptiFuse

REG. FUSEHOLDER, 30A-12AWG ORG

Technical Specifications

Parameters and characteristics for this part

Specification	LPR-05B-12OR

Current Rating (Amps)	30 A
For Use With/Related Products	APR, ANR
Fuse Size [x]	19.1 mm
Fuse Size [x]	0.75 "
Fuse Size [y]	5.1 mm
Fuse Size [y]	0.2 in
Fuse Type	Blade
Fuseholder Type	Holder
Mounting Type	Free Hanging (In-Line)
Number of Circuits	1
Termination Style	Wire Leads

Part	Current Rating (Amps)	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuseholder Type	Fuse Type	Mounting Type	Number of Circuits	Termination Style	For Use With/Related Products
OptiFuse LPR-05B-16R	15 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Holder	Blade	Free Hanging (In-Line)	1	Wire Leads	ANR APR
OptiFuse LPR-05B-12OR	30 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Holder	Blade	Free Hanging (In-Line)	1	Wire Leads	ANR APR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fuse Holder 30 A 58V 1 Circuit Blade Free Hanging (In-Line)
