Specification	19S601-271L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405
Cable Group Diameter (Semi Rigid)	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max	26.5 GHz
Housing Color	Gold
Impedance	50 Ohm

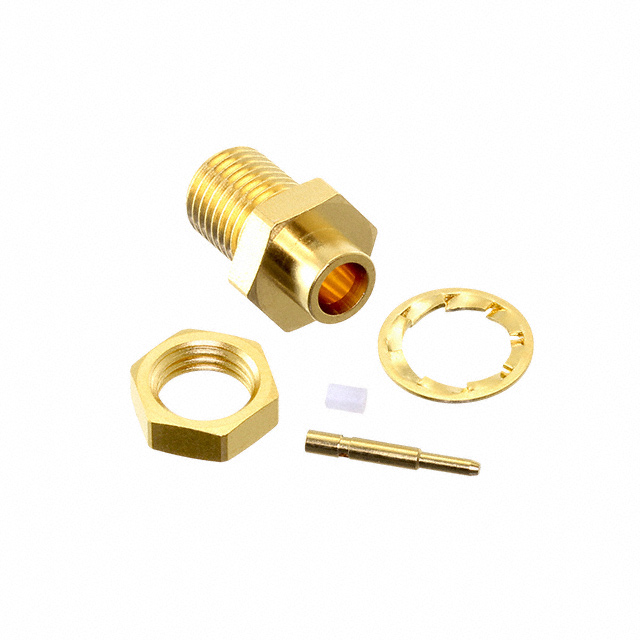

Includes	Nut, Connector, Contact, Lockwasher
Includes Total Count	4 pcs
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	335 V

19S601 Series

Part	Mounting Type	Features	Cable Group Diameter (Semi Rigid)	Cable Group	Frequency - Max	Connector Style	Mounting Feature	Contact Termination	Impedance	Connector Type	Number of Ports	Housing Color	Shield Termination	Center Contact Material	Fastening Type	Voltage Rating	Body Material	Dielectric Material	Mating Cycles	Includes	Includes Total Count	Body Finish	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating
Rosenberger 19S601-271L5	Panel Mount	Limited Detent	0.085 in	RG-405	26.5 GHz	SMP	Bulkhead Front Side Nut	Solder	50 Ohm	Male Pin Plug	1	Gold	Solder	Brass	Snap-On	335 V	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	Connector Contact Lockwasher Nut	4 pcs	Gold	155 °C	-65 °C	Gold
