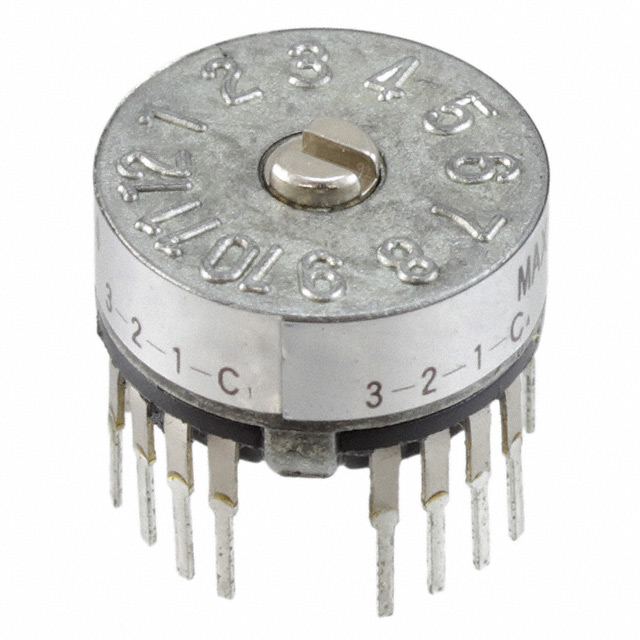

MRJB4304

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH ROTARY 3POS 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH ROTARY 3POS 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Number of Poles per Deck	Circuit per Deck	Number of Positions	Current Rating (Amps)	Actuator Length [x]	Angle of Throw	Contact Timing	Actuator Type	Voltage Rating - DC	Mounting Type	Features	Contact Material	Voltage Rating - AC	Contact Finish	Number of Decks [custom]	Index Stops	Termination Style	Circuit per Deck [custom]
TE Connectivity Raychem Cable Protection MRJB11204	1	SP12T	12	0.4 VA	1.02 mm	30 °	Non-Shorting	Screwdriver Slot	20 V	Through Hole	Epoxy Sealed Terminals	Nickel	20 V	Gold	1	Continuous	PC Pin
TE Connectivity Raychem Cable Protection MRJB4304				0.4 VA	1.02 mm	30 °	Non-Shorting	Screwdriver Slot	20 V	Through Hole	Epoxy Sealed Terminals	Nickel	20 V	Gold	1	Fixed	PC Pin	4P3T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rotary Switch 3 Position 4P3T 0.4VA (AC/DC) 20 VAC Through Hole

Technical documentation and resources

No documents available
