794627-4
ActiveTE Connectivity AMP Connectors

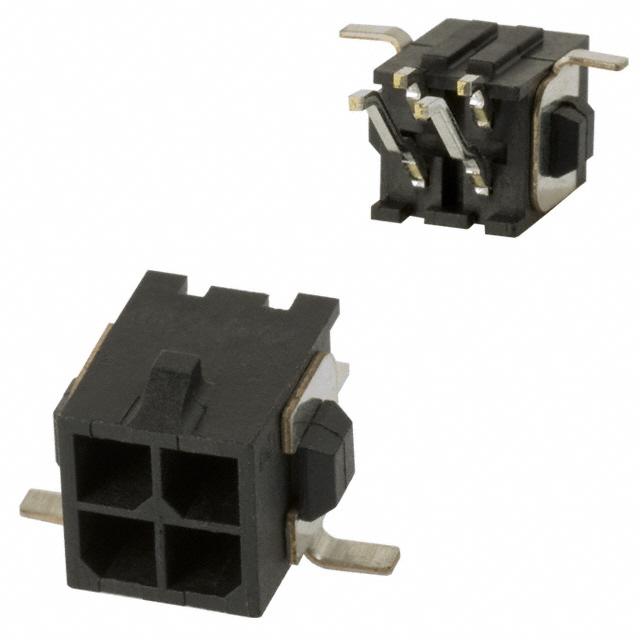

CONN HEADER SMD R/A 4POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
794627-4
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD R/A 4POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794627-4 | 794627 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Solder Retention | Solder Retention |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions | 4 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794627 Series
CONN HEADER SMD R/A 2POS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Material Flammability Rating | Contact Material | Number of Positions Loaded | Contact Type | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Row Spacing - Mating | Row Spacing - Mating | Features | Shrouding | Voltage Rating | Termination | Contact Finish - Post | Fastening Type | Mounting Type | Insulation Height | Insulation Height | Contact Shape | Insulation Material | Number of Rows | Current Rating (Amps) | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-794627-2 | -40 °C | 105 ░C | 2 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | ||||
TE Connectivity AMP Connectors 2-794627-4 | -40 °C | 105 ░C | 24 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin-Lead | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | Tin-Lead | |
TE Connectivity AMP Connectors 5-794627-0 | -40 °C | 105 ░C | 20 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 1-794627-6 | -40 °C | 105 ░C | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin-Lead | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | Tin-Lead | 16 | |
TE Connectivity AMP Connectors 4-794627-6 | -40 °C | 105 ░C | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | 16 | ||
TE Connectivity AMP Connectors 4-794627-8 | -40 °C | 105 ░C | 18 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 4-794627-0 | -40 °C | 105 ░C | 10 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 4-794627-2 | -40 °C | 105 ░C | 12 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 794627-4 | -40 °C | 105 ░C | 4 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin-Lead | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm | Tin-Lead | |
TE Connectivity AMP Connectors 5-794627-4 | -40 °C | 105 ░C | 24 | UL94 V-0 | Brass | All | Male Pin | General Purpose | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder Retention | Shrouded - 4 Wall | 250 VDC | Solder | Tin | Locking Ramp | Surface Mount, Right Angle | 7.37 mm | 0.29 in | Square | Nylon, Polyamide (PA) | 2 | Varies by Wire Gauge | Board to Cable/Wire | 2.54 çm | 100 çin | Header | Black | 0.118 in | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794627 Series
Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm)
