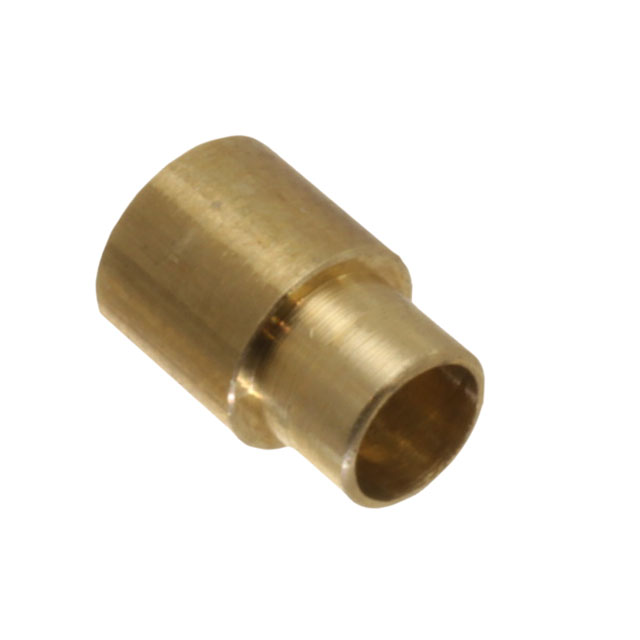

M1503-B-2545-B
ActiveRAF Electronic Hardware
4_5_MM_ROUND_SWAGE_STANDOFFS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M1503-B-2545-B
ActiveRAF Electronic Hardware
4_5_MM_ROUND_SWAGE_STANDOFFS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M1503-B-2545-B |
|---|---|
| Between Board Height | 6 mm |
| Between Board Height | 0.236 in |
| Diameter - Outside [diameter] | 4.5 mm |
| Diameter - Outside [diameter] | 0.177 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.343 in |
| Length - Overall [x] | 8.7 mm |
| Material | Brass |
| Screw, Thread Size | M2.5x0.45 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.07 | |
| 5 | $ 0.89 | |||
| 10 | $ 0.80 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.53 | |||
Description
General part information
M1503 Series
Round Standoff Threaded M2.5x0.45 Brass 0.236" (6.00mm)
