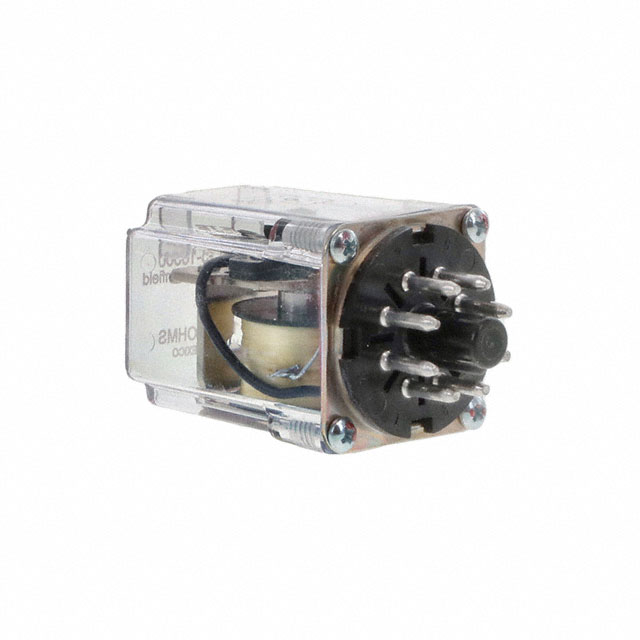

KCP-5-10000
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE SPDT 2A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KCP-5-10000
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE SPDT 2A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KCP-5-10000 |
|---|---|
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 240 VA |
| Mounting Type | Socketable |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage [Max] | 120 VAC |
| Termination Style | Plug In, 8 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KCP-5 Series
General Purpose Relay SPDT (1 Form C) Socketable
