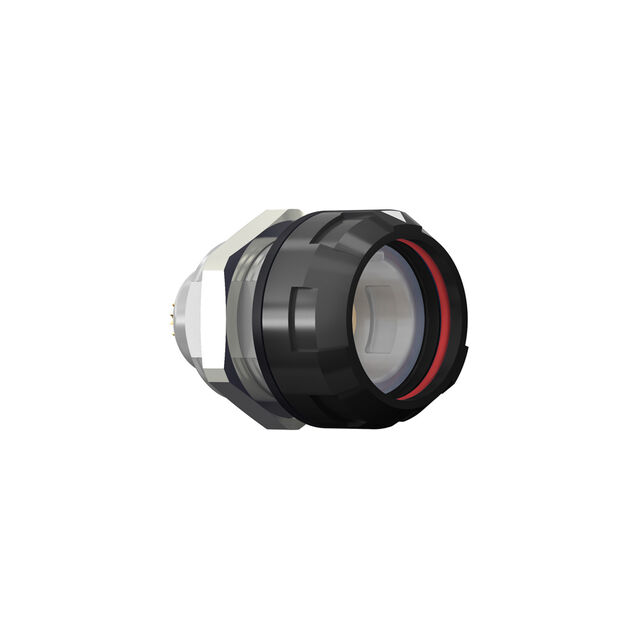

Specification	G41MH7-P10LCC0-0080

Applications	Medical, Industrial, Testing Equipment & Measurement
Color	Gray, Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	4 A
Fastening Type	Push-Pull, Detent Lock
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP64, IP67
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	10
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-50 °C
Orientation	H
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	25 V

G41MH7-P Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Applications	Termination	Ingress Protection Description	Ingress Protection IP Rating	Insert Material	Connector Type	Orientation	Mounting Type	Shell Material	Color	Shielding	Mounting Feature	Fastening Type	Primary Material	Contact Material	Shell Size - Insert	Shell Size - Insert	Contact Finish - Mating	Material Flammability Rating	Voltage Rating	Current Rating
ODU G41MH7-P10LCC0-0080	120 °C	-50 °C	10	Industrial Medical Testing Equipment & Measurement	Solder Cup	Dust Tight Water Resistant Waterproof	IP64 IP67	PEEK Polyetheretherketone	Female Sockets Receptacle	H	Panel Mount	Polysulfone (PSU)	Black Gray	Unshielded	Bulkhead Rear Side Nut	Detent Lock Push-Pull	Plastic	Brass	1	1	Gold	UL94 V-0	25 V	4 A
