R143297700

Active

Radiall USA, Inc.

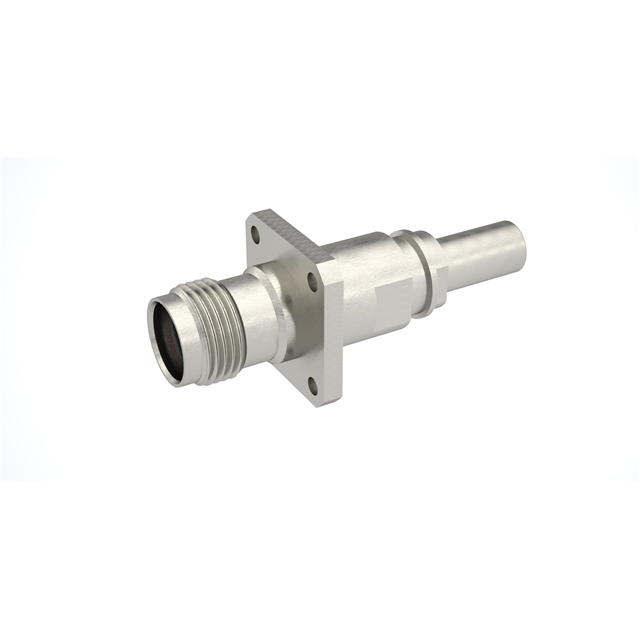

TNC / STRAIGHT SQUARE FLANGE JAC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / STRAIGHT SQUARE FLANGE JAC

Technical Specifications

Parameters and characteristics for this part

Specification	R143297700

Body Material	Stainless Steel
Cable Group	RG-142, 400, 223
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	66 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Impedance	Cable Group	Frequency - Max [Max]	Number of Ports	Center Contact Plating	Center Contact Material	Housing Color	Mating Cycles	Body Material	Contact Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Mounting Feature	Connector Type	Shield Termination	Dielectric Material
Radiall USA, Inc. R143292700	50 Ohms	223 400 RG-142	18 GHz	1	Gold	Bronze	Silver	500	Stainless Steel	Crimp	500 V	-65 ░C	165 °C	TNC	Flange	Female Socket Jack	Crimp	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R143297700	50 Ohms	223 400 RG-142	66 GHz	1	Gold	Beryllium Copper	Silver	500	Stainless Steel	Crimp	500 V	-65 ░C	165 °C	TNC	Flange	Female Socket Jack	Crimp	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 114.75

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
