XM3D-1521

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 15POS SLDR CUP

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 15POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

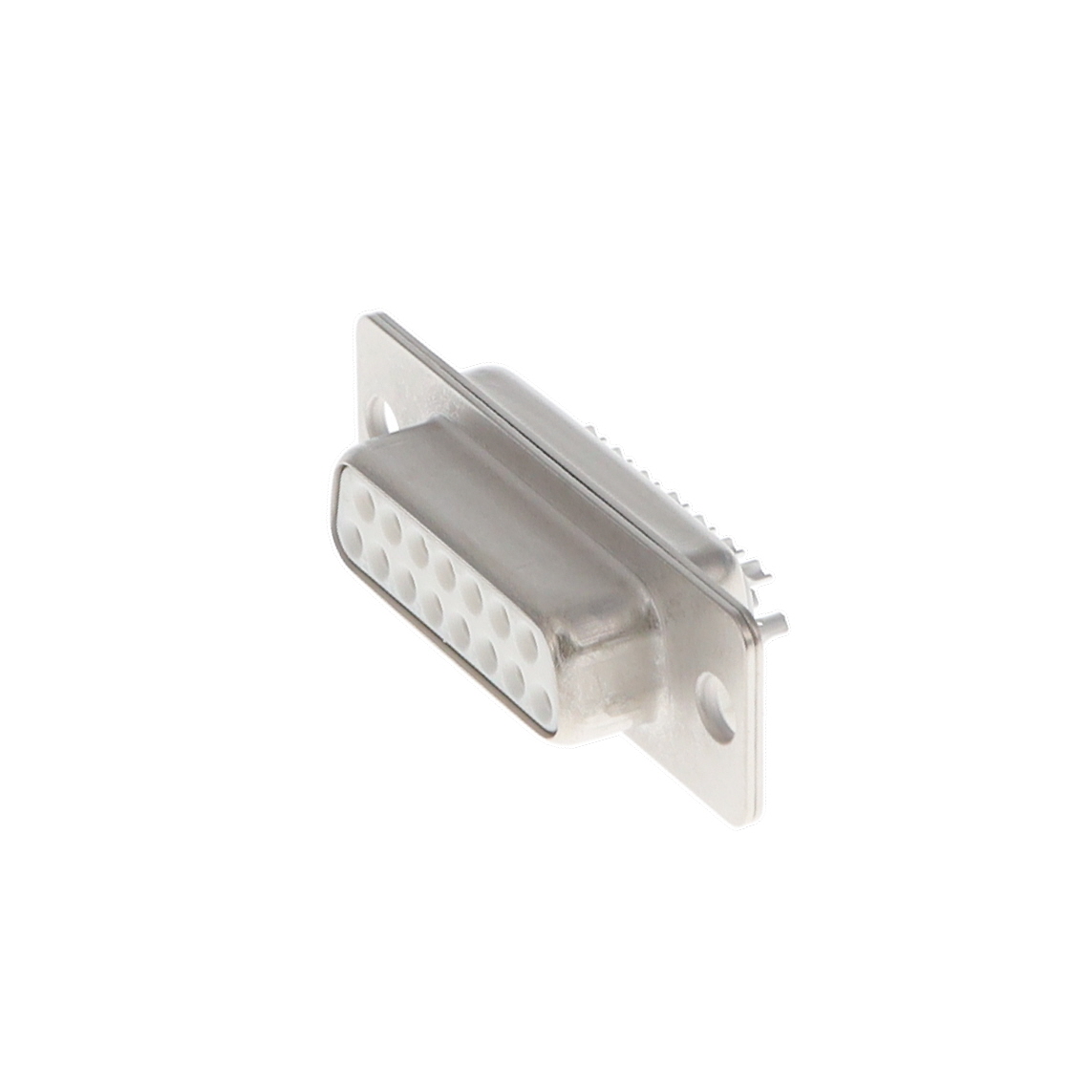

15 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XM3D-1521	XM3D Series

Color	White	White
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	16 µin	16 µin
Contact Finish Thickness	0.41 µm	0.41 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded	Shielded
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	15	15 - 37
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	2	2
Shell Size, Connector Layout	-	4 (DC, C)
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	28 AWG	28 AWG
Wire Gauge [Min]	22 AWG	22 AWG

CONN D-SUB RCPT 15POS SLDR CUP

Part	Number of Rows	Voltage Rating	Color	Number of Positions	Connector Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Current Rating (Amps)	Shell Size, Connector Layout	Material Flammability Rating	Contact Material	Shell Material, Finish	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Dielectric Material	Flange Feature	Connector Type	Shell Size, Connector Layout
Omron Electronics Inc-EMC Div XM3D-1521	2	300 VDC	White	15	D-Sub	Shielded	105 ░C	-55 °C	Gold	5 A	2	UL94 V-0	Phosphor Bronze	Nickel Plated, Steel	Signal	28 AWG	22 AWG	16 µin	0.41 µm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled	Housing/Shell (Unthreaded)	Receptacle, Female Sockets
Omron Electronics Inc-EMC Div XM3D-3721	2	300 VDC	White	37	D-Sub	Shielded	105 ░C	-55 °C	Gold	5 A		UL94 V-0	Phosphor Bronze	Nickel Plated, Steel	Signal	28 AWG	22 AWG	16 µin	0.41 µm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled	Housing/Shell (Unthreaded)	Receptacle, Female Sockets	4 (DC, C)
