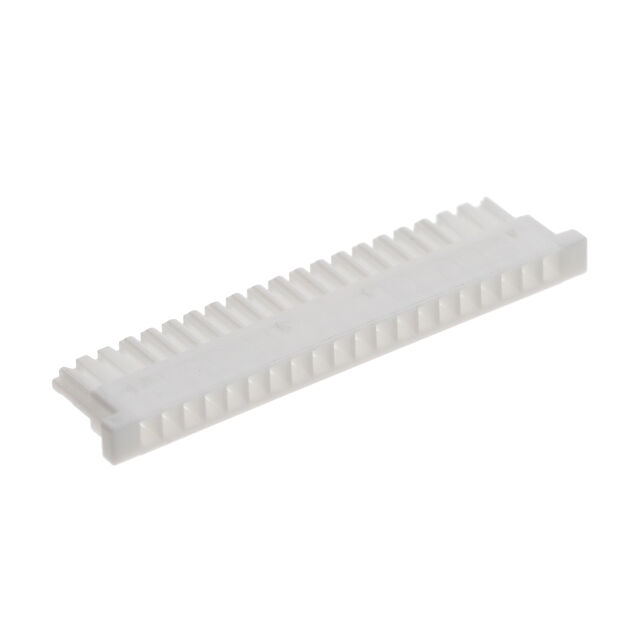

SHLP-20V-S-B
ActiveJST Sales America Inc.
CONN RCPT HSG 20POS 1.00MM
Deep-Dive with AI
Search across all available documentation for this part.
SHLP-20V-S-B
ActiveJST Sales America Inc.
CONN RCPT HSG 20POS 1.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SHLP-20V-S-B |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| 3000 | $ 0.11 | |||
Description
General part information
SHLP-20V Series
20 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
