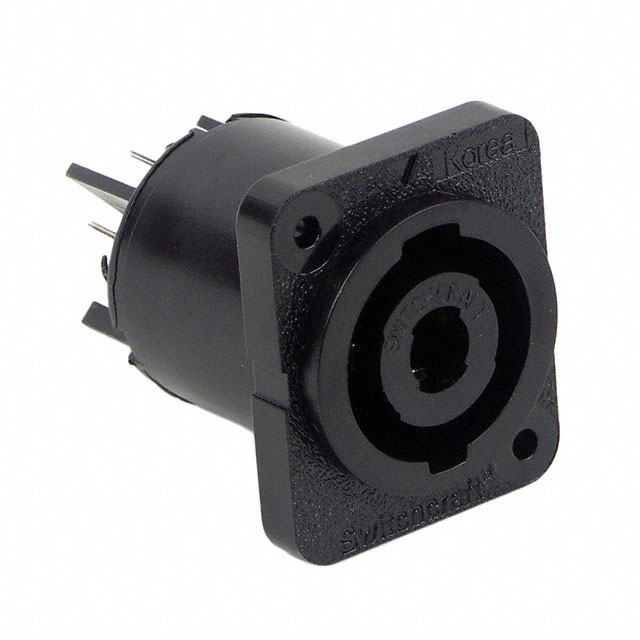

HPCP410F

Active

Switchcraft Inc.

CONN CIRC RCPT 4POS SILVER QC

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRC RCPT 4POS SILVER QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 (Power) Position Circular Connector Receptacle, Non-Gendered Quick Connect - 0.250" (6.3mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	HPCP410F	HPCP41 Series

Applications	Audio, Medical, Industrial	Audio, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Non-Gendered	Receptacle, Non-Gendered
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	50 A	50 A
Fastening Type	Push-Pull, Latch Lock	Push-Pull, Latch Lock
Ingress Protection	IP25	IP25
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	0.25 in	0.187 - 0.25 in
Termination	6.3 mm	4.7 - 6.3 mm
Termination	Quick Connect	Quick Connect

CONN CIRC RCPT 4POS SILVER QC

Part	Contact Finish - Mating	Ingress Protection	Orientation	Material Flammability Rating	Termination	Termination	Termination	Connector Type	Mounting Feature	Current Rating (Amps)	Fastening Type	Applications	Contact Material	Color	Number of Positions	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Insert Material
Switchcraft Inc. HPCP410F	Silver	IP25	Keyed	UL94 V-0	0.25 in	6.3 mm	Quick Connect	Receptacle, Non-Gendered	Flange	50 A	Latch Lock, Push-Pull	Audio, Industrial, Medical	Copper Alloy	Black	4	Unshielded	85 °C	-55 °C	Plastic	Thermoplastic
Switchcraft Inc. HPCP41F1	Silver	IP25	Keyed	UL94 V-0	0.187 "	4.7 mm	Quick Connect	Receptacle, Non-Gendered	Flange	50 A	Latch Lock, Push-Pull	Audio, Industrial, Medical	Copper Alloy	Black	4	Unshielded	85 °C	-55 °C	Plastic	Thermoplastic
Switchcraft Inc. HPCP41F	Silver	IP25	Keyed	UL94 V-0	0.25 in	6.3 mm	Quick Connect	Receptacle, Non-Gendered	Flange	50 A	Latch Lock, Push-Pull	Audio, Industrial, Medical	Copper Alloy	Black	4	Unshielded	85 °C	-55 °C	Plastic	Thermoplastic
