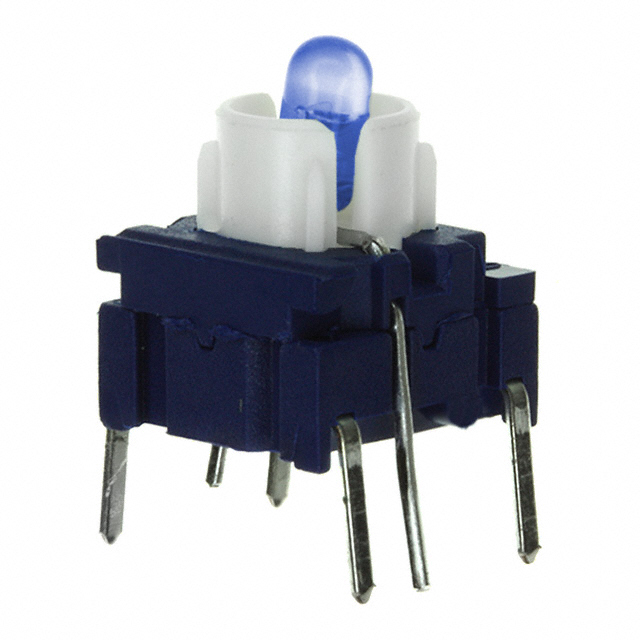

3FTL600

Obsolete

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3FTL600

Obsolete

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3FTL600	3FTL6 Series

Actuator Height off PCB, Vertical	10.4 mm	10.4 mm
Actuator Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated	Side Actuated, Top Actuated
Actuator Type	Plunger for Cap	Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Illuminated	Non-Illuminated, Illuminated
Illumination Type, Color	LED, Blue	Red, LED, Yellow, Green/Red, Green, Blue
Illumination Voltage (Nominal)	2.1 VDC	2 - 2.3 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Operating Force	300 gf	300 gf
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	PC Pin	PC Pin

3FTL6 Series

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Type	Actuator Orientation	Circuit	Switch Travel	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Features	Operating Force	Mechanical Life	Outline [x]	Outline [y]	Contact Rating @ Voltage	Switch Function	Ingress Protection	Termination Style	Actuator Material	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Height off PCB, Vertical
MEC Switches 3FTL6RAS	Plunger for Cap	Side Actuated	SPST-NO	1 mm	Through Hole, Right Angle	-40 °C	115 °C	Non-Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)
MEC Switches 3FTL680	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	LED, Red	2 VDC	10.4 mm
MEC Switches 3FTL645	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	LED, Yellow	2.3 VDC	10.4 mm
MEC Switches 3FTL68020	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	Green/Red, LED	2 VDC, 2.1 VDC	10.4 mm
MEC Switches 3FTL624	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	Green, LED	2 VDC	10.4 mm
MEC Switches 3FTL620	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	Green, LED	2.1 VDC	10.4 mm
MEC Switches 3FTL689	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	LED, Red	2 VDC	10.4 mm
MEC Switches 3FTL600	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	Blue, LED	2.1 VDC	10.4 mm
MEC Switches 3FTL640	Plunger for Cap	Top Actuated	SPST-NO	1 mm	Through Hole	-40 °C	115 °C	Illuminated	Sealed - Flux Protection	300 gf	10000000 Cycles	10.1 mm	10.1 mm	0.05 A, 24 VDC	Off-Mom	IP67 - Dust Tight, Waterproof	PC Pin	Polybutylene Terephthalate (PBT)	LED, Yellow	2.1 VDC	10.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3FTL6 Series

Tactile Switch SPST-NO Top Actuated Through Hole
