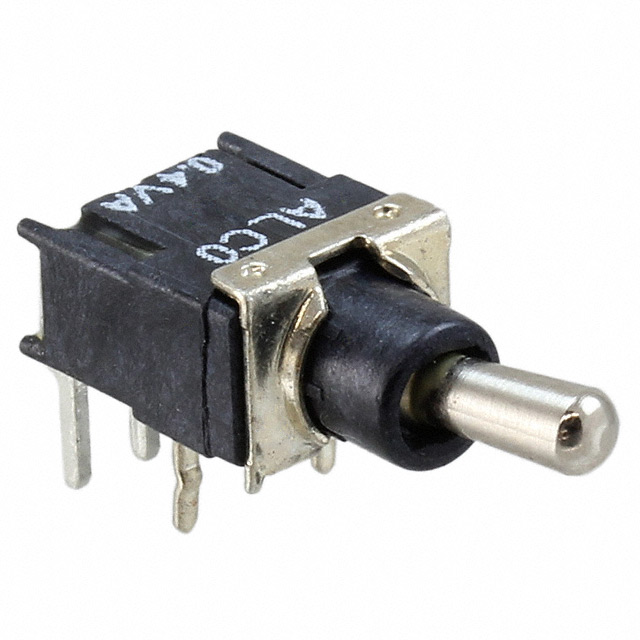

TST11DGRA1D04

Obsolete

TE Connectivity ALCOSWITCH Switches

SWITCH TOGGLE SPDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity ALCOSWITCH Switches

SWITCH TOGGLE SPDT 0.4VA 20V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TST11DGRA1D04	TST11D Series

Actuator Length [x]	5.23 mm	5.23 mm
Actuator Material	Copper Alloy, Nickel Plated	Copper Alloy, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 VA
Electrical Life	80000 Cycles	80000 Cycles
Features	Sealed	Sealed
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 V
Voltage Rating - DC	20 V	20 V

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Actuator Material	Bushing Thread	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Termination Style	Mounting Type	Actuator Type	Features	Illumination	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Electrical Life	Circuit
TE Connectivity ALCOSWITCH Switches TST11DGRA1D04	Copper Alloy, Nickel Plated	Unthreaded	5.23 mm	-30 ░C	85 °C	On-On	PC Pin	Through Hole, Right Angle	Standard Round	Sealed	Non-Illuminated	0.4 VA	20 V	20 V	80000 Cycles	SPDT
TE Connectivity ALCOSWITCH Switches TST11DGRA1D	Copper Alloy, Nickel Plated	Unthreaded	5.23 mm	-30 ░C	85 °C	On-On	PC Pin	Through Hole, Right Angle	Standard Round	Sealed	Non-Illuminated	0.4 VA	20 V	20 V	80000 Cycles	SPDT
TE Connectivity ALCOSWITCH Switches TST11DGPC1D04	Copper Alloy, Nickel Plated	Unthreaded	5.23 mm	-30 ░C	85 °C	On-On	PC Pin	Through Hole	Standard Round	Sealed	Non-Illuminated	0.4 VA	20 V	20 V	80000 Cycles	SPDT
