SFU34096E1AE1TO-I-MS-1A1-STD

SWISSBIT

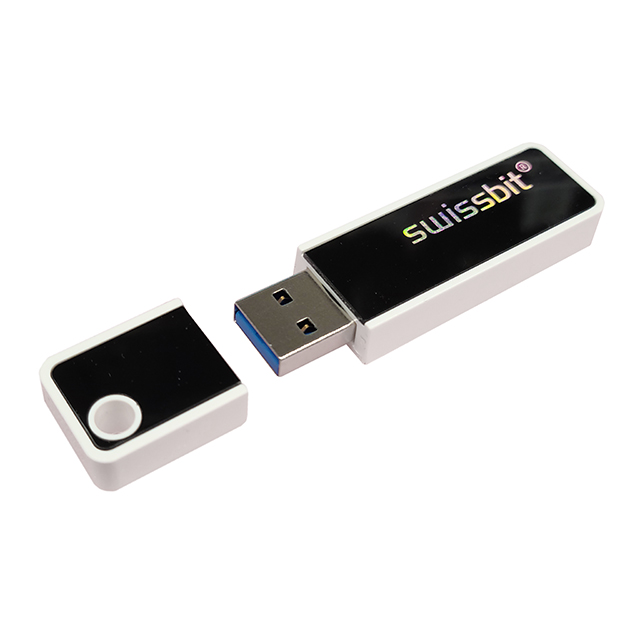

IND USB FLASH DRIVE U-500K 4 GB

Search across all available documentation for this part.

SWISSBIT

IND USB FLASH DRIVE U-500K 4 GB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFU34096E1AE1TO-I-MS-1A1-STD	SFU34096 Series

Memory Size	4 GB	4 GB
Memory Type	FLASH - NAND (SLC)	FLASH - NAND (SLC), FLASH - NAND (pSLC)
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Size / Dimension [x]	67.8 mm	24 - 67.8 mm
Size / Dimension [y]	18 mm	4.5 - 18 mm
Size / Dimension [z]	8.3 mm	8.3 - 12.1 mm
Speed - Read	175 MB/s	175 - 190 MB/s
Speed - Write	90 MB/s	90 - 125 MB/s
Type	USB 3.1	USB 3.1

IND USB FLASH DRIVE U-500K 4 GB

Part	Memory Size	Memory Type	Speed - Read	Speed - Write	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Type
SWISSBIT SFU34096E1AE1TO-C-MS-1A1-STD	4 GB	FLASH - NAND (SLC)	175 MB/s	90 MB/s	8.3 mm	67.8 mm	18 mm	70 °C	0 °C	USB 3.1
SWISSBIT SFU34096C1AE2TO-C-GE-1AP-STD	4 GB	FLASH - NAND (pSLC)	190 MB/s	125 MB/s	12.1 mm	24 mm	4.5 mm	70 °C	0 °C	USB 3.1
SWISSBIT SFU34096E1AE1TO-I-MS-1A1-STD	4 GB	FLASH - NAND (SLC)	175 MB/s	90 MB/s	8.3 mm	67.8 mm	18 mm	85 °C	-40 °C	USB 3.1
SWISSBIT SFU34096C1AE2TO-I-GE-1AP-STD	4 GB	FLASH - NAND (pSLC)	190 MB/s	125 MB/s	12.1 mm	24 mm	4.5 mm	85 °C	-40 °C	USB 3.1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB Flash Drive 4GB FLASH - NAND (SLC) USB 3.1

Technical documentation and resources
