895-020-556-202
ActiveEDAC Inc.

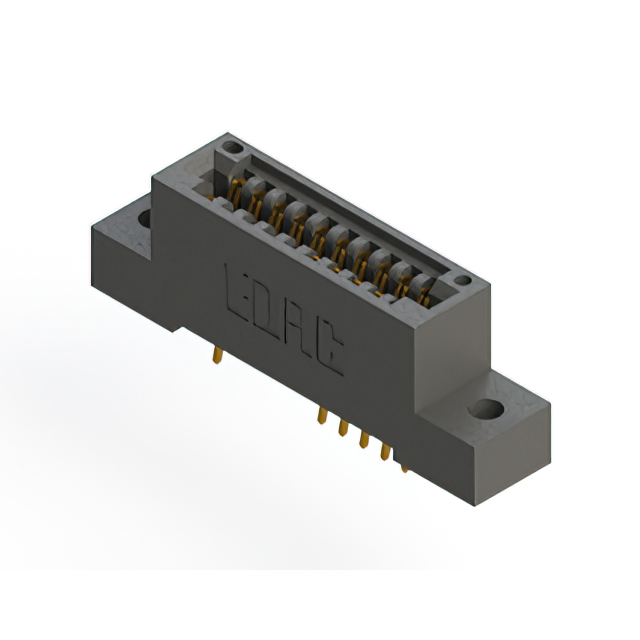

CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-020-556-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-020-556-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-020 Series
...
| Part | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Number of Rows | Card Type | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Read Out | Gender | Termination Rows | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Termination | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 10 | Dual | Female | 2 | Copper Alloy | Through Hole | 125 °C | -40 °C | 2.54 mm | 0.1 in | Wire Wrap | Cantilever | ||||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | Flush Mount M3 Threaded Insert Top Opening | 10 | Dual | Female | 2 | Copper Alloy | Through Hole | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever | ||||||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 10 | Dual | Female | 2 | Copper Alloy | Through Hole Right Angle | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever | ||||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | 10 | Dual | Female | 2 | Copper Alloy | Through Hole | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever | |||||||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1 | Non Specified - Single Edge | Black | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Single | Female | 1 | Copper Alloy | Through Hole | 125 °C | -40 °C | 2.54 mm | 0.1 in | Wire Wrap | Cantilever | 20 | 20 | 20 | ||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1 | Non Specified - Single Edge | Black | Single | Female | 1 | Copper Alloy | Through Hole | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever | 20 | 20 | 20 | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 10 | Dual | Female | 2 | Copper Alloy | Board Edge Straddle Mount | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever | Card Extender | |||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | Flush Mount M3 Threaded Insert Top Opening | 10 | Dual | Female | 2 | Copper Alloy | Board Edge Straddle Mount | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever | Card Extender | |||||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 10 | Dual | Female | 2 | Copper Alloy | Board Edge Straddle Mount | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever | Card Extender | |||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | Non Specified - Dual Edge | Black | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 10 | Dual | Female | 2 | Copper Alloy | Through Hole | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 46.67 | |
Description
General part information
895-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
