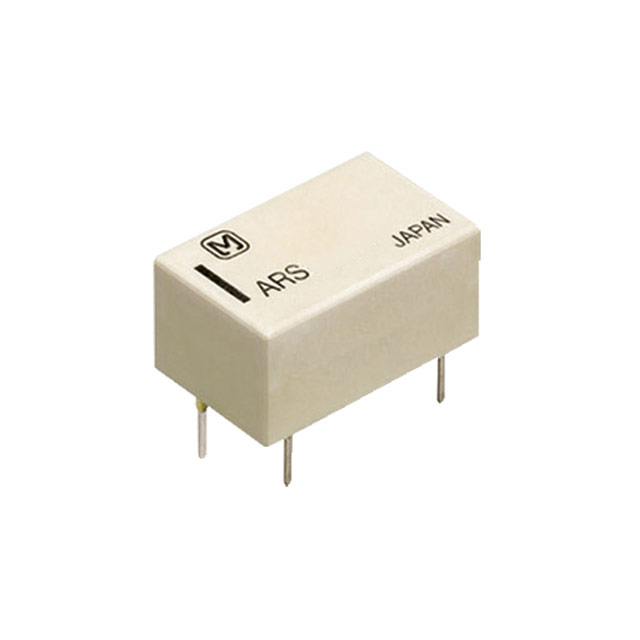

ARS304H
ActivePanasonic Electric Works
RELAY RF SPDT 500MA 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
ARS304H
ActivePanasonic Electric Works
RELAY RF SPDT 500MA 4.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARS304H |
|---|---|
| Coil Current | 44.4 mA |
| Coil Power | 200 mW |
| Coil Resistance | 101 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 4.5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Gold Plating |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.38 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 6 ms |
| Switching Voltage | 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.23 | |
| 10 | $ 11.76 | |||
| 25 | $ 11.17 | |||
| 50 | $ 10.58 | |||
| 100 | $ 9.99 | |||
| 250 | $ 9.11 | |||
| 500 | $ 8.52 | |||
| 1000 | $ 8.08 | |||
Description
General part information
ARS304 Series
RELAY RF SPDT 500MA 4.5V
