7415WS 0601000

Active

Belden Inc.

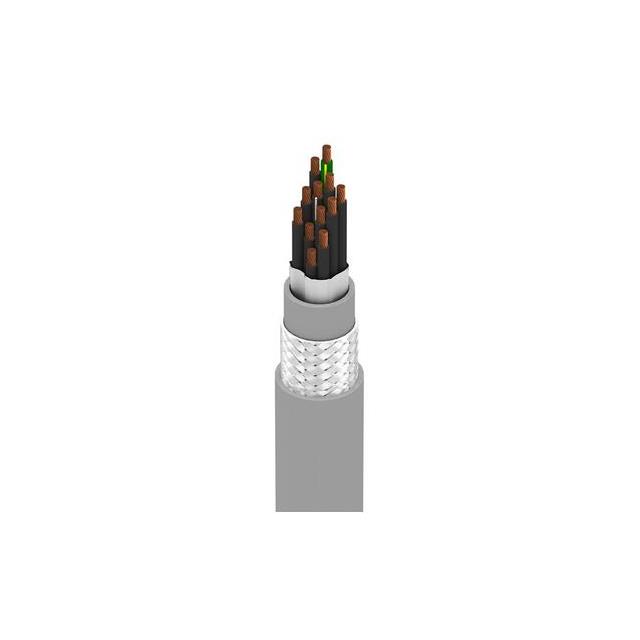

CABLE 12COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7415WS 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	14.68 mm
Jacket (Insulation) Diameter [diameter]	0.578 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Ratings	UL Style 20328
Wire Gauge	18 AWG

Part	Conductor Insulation	Ratings	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Wire Gauge	Number of Conductors	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type
Belden Inc. 7415WS 060250	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	UL Style 20328	Copper Bare	16	30 AWG	Chrome	1.6 mm	0.063 in	3000 "	76.2 m	18 AWG	12	Thermoplastic Elastomer (TPE)	Oil Resistant UV Resistant	14.68 mm	0.578 in	Multi-Conductor
Belden Inc. 7415WS 0601000	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	UL Style 20328	Copper Bare	16	30 AWG	Chrome	1.6 mm	0.063 in	1000 ft	304.8 m	18 AWG	12	Thermoplastic Elastomer (TPE)	Oil Resistant UV Resistant	14.68 mm	0.578 in	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 10.15

General part information

12 Conductor Multi-Conductor Cable Chrome 18 AWG 1000.0' (304.8m)

Technical documentation and resources
