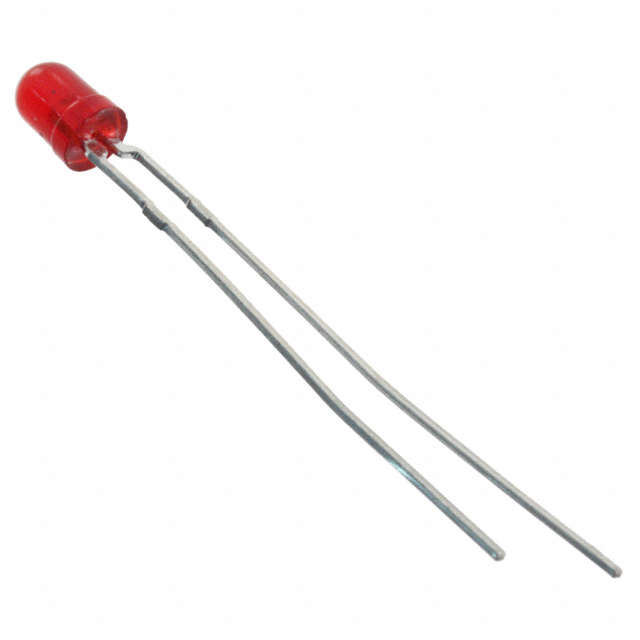

HLMP1700C6A0
ActiveEverlight Electronics Co Ltd
LED RED DIFFUSED T-1 T/H
HLMP1700C6A0
ActiveEverlight Electronics Co Ltd
LED RED DIFFUSED T-1 T/H
Description
General part information
HLMP1700 Series
Red LED Indication - Discrete 1.8V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP1700C6A0 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) | 6.3 mm |
| Lens Color | Red |
| Lens Diameter | 3.1 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 2 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-100 |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Peak | 635 nm |
