0041.9147.3317

Active

SCHURTER Inc.

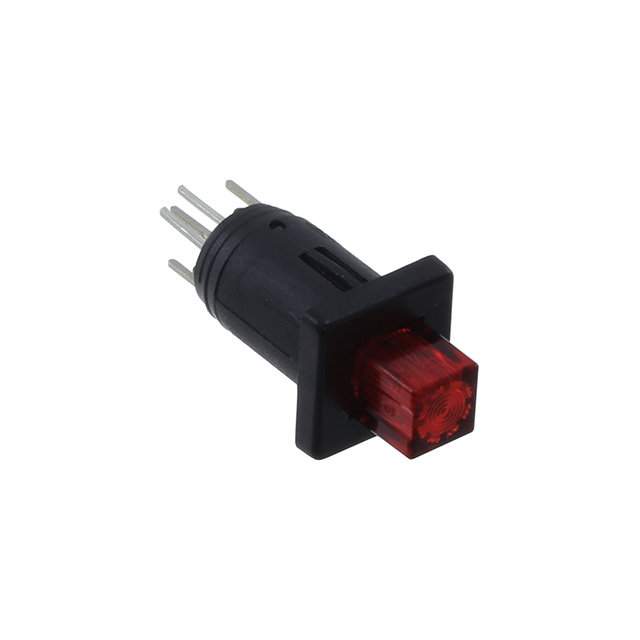

SWITCH PUSH BUTTON N.O. DPST SQUARE BUTTON 0.2A 60VAC 50VDC MOMENTARY PANEL MOUNT/THROUGH HOLE PC PINS BOX

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH BUTTON N.O. DPST SQUARE BUTTON 0.2A 60VAC 50VDC MOMENTARY PANEL MOUNT/THROUGH HOLE PC PINS BOX

Technical Specifications

Parameters and characteristics for this part

Specification	0041.9147.3317

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	200 mA
Electrical Life	10000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.9 VDC
Ingress Protection	IP40
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	60 V
Voltage Rating - DC	50 VDC

SWITCH PUSH BUTTON N.O. DPST SQUARE BUTTON 0.2A 60VAC 50VDC MOMENTARY PANEL MOUNT/THROUGH HOLE PC PINS BOX

Part	Ingress Protection	Actuator Type	Current Rating (Amps)	Illumination Voltage (Nominal)	Voltage Rating - DC	Type	Switch Function	Mechanical Life	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Electrical Life	Illumination Type, Color	Color - Actuator/Cap	Mounting Type	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking
SCHURTER Inc. 0041.9147.3317	IP40	Button, Square	200 mA	1.9 VDC	50 VDC	Illuminated, Standard	Off-Mom	10000 Steps	60 V	8 mm	10000 Cycles	LED, Red	Red	Panel Mount, Front	PC Pin	DPST-NO	-25 °C	60 °C	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO Standard, Illuminated Panel Mount, Front
