AP62600SJ-EVM

Active

Diodes Inc

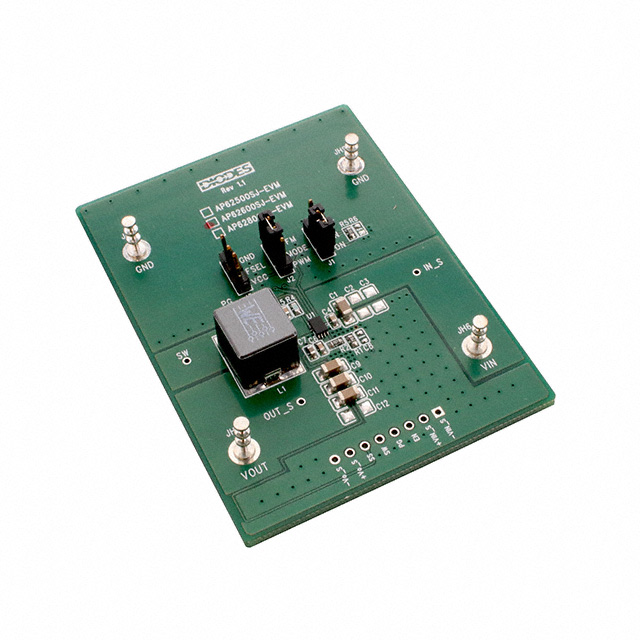

EVAL BOARD FOR AP62600

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP62600SJ-EVM

Active

Diodes Inc

EVAL BOARD FOR AP62600

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP62600SJ-EVM

Board Type	Fully Populated
Current - Output	6 A
Main Purpose	DC/DC, Step Up
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Boost
Supplied Contents	Board(s)
Utilized IC / Part	AP62600
Voltage - Input [Max]	18 V
Voltage - Input [Min]	4.5 V
Voltage - Output [Max]	7 V
Voltage - Output [Min]	0.6 V

AP62600 Series

4.5V TO 18V INPUT, 6A FULL FEATURE SET SYNCHRONOUS BUCK CONVERTER

Part	Voltage - Output [Max]	Voltage - Output [Min]	Outputs and Type	Outputs and Type	Supplied Contents	Regulator Topology	Main Purpose	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Current - Output
Diodes Inc AP62600SJ-EVM	7 V	0.6 V	Non-Isolated	1	Board(s)	Boost	DC/DC Step Up	Fully Populated	18 V	4.5 V	AP62600	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.39

Description

General part information

AP62600 Series

The AP62600 is a 6A, synchronous buck converter with a wide input voltage range of 4.5V to 18V. The device fully integrates a 36mΩ highside power MOSFET and a 14mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.
