1424498

Active

Phoenix Contact

CABLE ACCESSORIES GLAND POLYAMIDE JET BLACK

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE ACCESSORIES GLAND POLYAMIDE JET BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

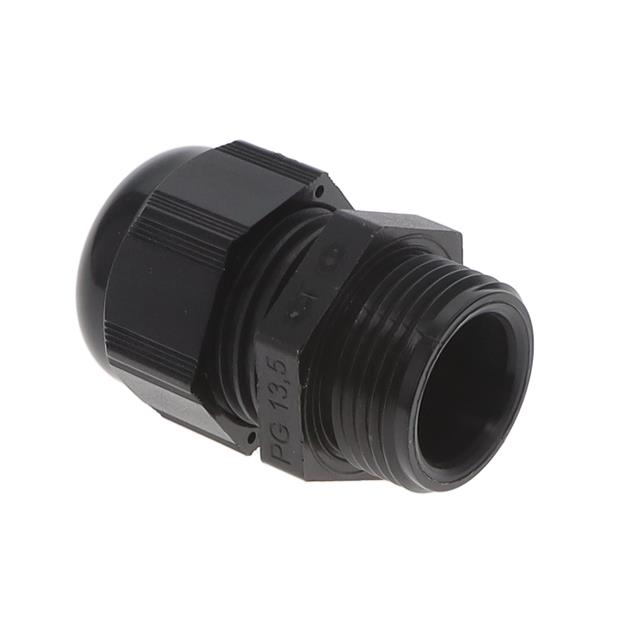

Cable Gland Polyamide (PA), Nylon PG13.5 Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1424498	G-INS-PG13,5 Series

Color	Black	Gray, Silver, Black
Includes	Seal	Seal, O-Ring
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP66, IP68, IP69
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 in
Thread Length	10 mm	6.5 - 10 mm
Thread Length	0.394 in	0.256 - 0.394 in
Thread Size	PG13.5	PG13.5
Type	Cable Gland	Cable Gland

CABLE GLAND 6-12MM PG13.5

Part	Thread Length	Thread Length	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Ingress Protection	Includes	Color	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type
Phoenix Contact 1424488	10 mm	0.394 in	Polyamide (PA), Nylon	0.472 in	12 mm	PG13.5	IP68 - Dust Tight, Waterproof	Seal	Gray	100 °C	-40 °C	6 mm	0.236 in	Cable Gland
Phoenix Contact 1411173	6.5 mm	0.256 in	Brass, Nickel Plated	0.472 in	12 mm	PG13.5	IP66, IP68, IP69	O-Ring, Seal	Silver	100 °C	-40 °C	6 mm	0.236 in	Cable Gland
Phoenix Contact 1424498	10 mm	0.394 in	Polyamide (PA), Nylon	0.472 in	12 mm	PG13.5	IP68 - Dust Tight, Waterproof	Seal	Black	100 °C	-40 °C	6 mm	0.236 in	Cable Gland
