1424488

Active

Phoenix Contact

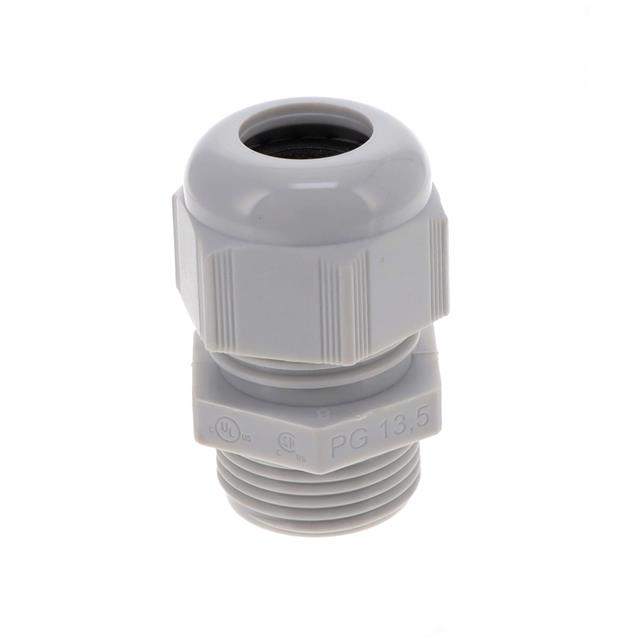

CABLE GLAND 6-12MM PG13.5

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 6-12MM PG13.5

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424488	G-INS-PG13,5 Series

Color	Gray	Gray, Silver, Black
Includes	Seal	Seal, O-Ring
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP66, IP68, IP69
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 in
Thread Length	10 mm	6.5 - 10 mm
Thread Length	0.394 in	0.256 - 0.394 in
Thread Size	PG13.5	PG13.5
Type	Cable Gland	Cable Gland

CABLE GLAND 6-12MM PG13.5

Part	Thread Length	Thread Length	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Ingress Protection	Includes	Color	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type
Phoenix Contact 1424488	10 mm	0.394 in	Polyamide (PA), Nylon	0.472 in	12 mm	PG13.5	IP68 - Dust Tight, Waterproof	Seal	Gray	100 °C	-40 °C	6 mm	0.236 in	Cable Gland
Phoenix Contact 1411173	6.5 mm	0.256 in	Brass, Nickel Plated	0.472 in	12 mm	PG13.5	IP66, IP68, IP69	O-Ring, Seal	Silver	100 °C	-40 °C	6 mm	0.236 in	Cable Gland
Phoenix Contact 1424498	10 mm	0.394 in	Polyamide (PA), Nylon	0.472 in	12 mm	PG13.5	IP68 - Dust Tight, Waterproof	Seal	Black	100 °C	-40 °C	6 mm	0.236 in	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.68

General part information

Cable Gland Polyamide (PA), Nylon PG13.5 Gray
