KX14-20K11DE

Obsolete

JAE Electronics

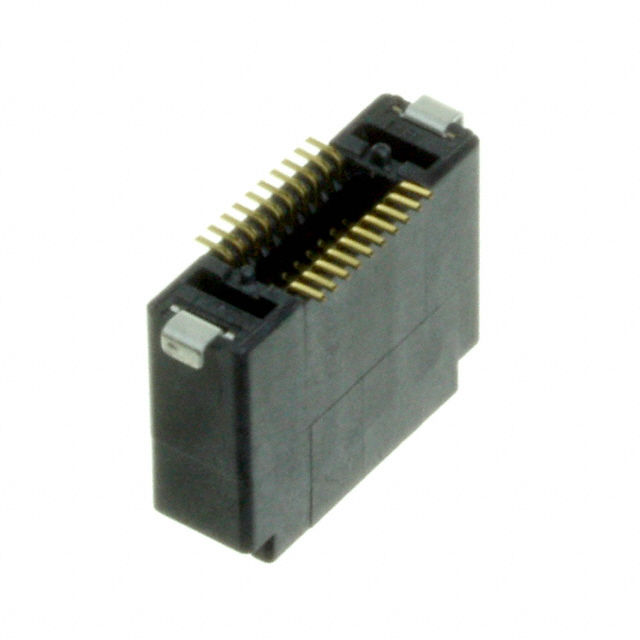

CONN RCPT 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-20K11DE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Mated Stacking Heights [z]	15 mm, 13 mm, 14 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Height Above Board	Height Above Board [z]	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Number of Rows	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Height Above Board	Mated Stacking Heights	Mated Stacking Heights [z]
JAE Electronics KX14-20K8D-E650E	9.55 mm	0.376 in	0.8 mm	0.031 in	Surface Mount	20	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	4 Áin	0.1 Ám	Gold
JAE Electronics KX14-20K2D-E1000E	3.55 mm		0.8 mm	0.031 in	Surface Mount	20	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	4 Áin	0.1 Ám	Gold	0.14 in	4 mm 5 mm 6 mm
JAE Electronics KX14-20K11DE			0.8 mm	0.031 in	Surface Mount	20	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	4 Áin	0.1 Ám	Gold			13 mm 14 mm 15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
