R114665000W

Active

Radiall USA, Inc.

SMB F RA PCB

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F RA PCB

Technical Specifications

Parameters and characteristics for this part

Specification	R114665000W

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Voltage Rating	Number of Ports	Connector Style	Shield Termination	Mounting Type	Mating Cycles	Housing Color	Connector Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Frequency - Max [Max]	Impedance	Contact Termination	Fastening Type	Center Contact Material	Center Contact Plating	Body Material
Radiall USA, Inc. R114665000W	500 V	1	SMB	Solder	Through Hole Right Angle	500	Gold	Jack Male Pin	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Gold	4 GHz	50 Ohms	Solder	Snap-On	Brass	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

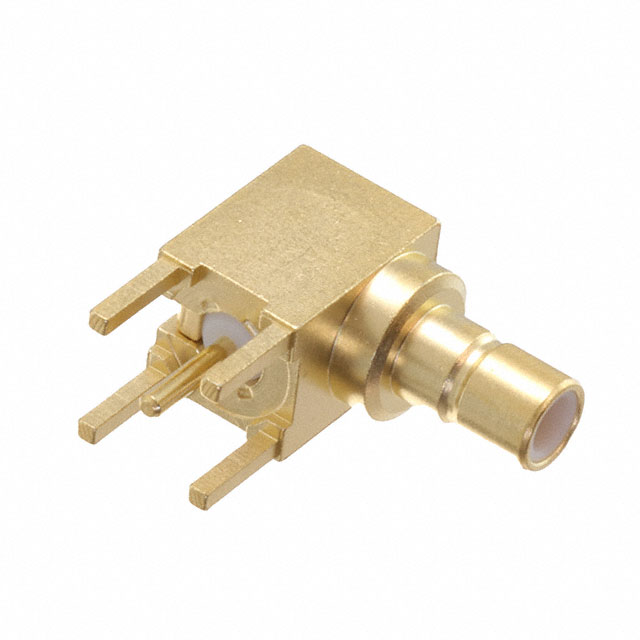

SMB Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
