C1CXS-1436M
ActiveCW Industries
IDC CABLE - CKC14S/AE14M/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1CXS-1436M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Cable |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Features | Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In |
C1CXS-1 Series
| Part | Number of Rows | Cable Termination | Shielding | Length [x] | Length [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Color | Pitch - Connector | Pitch - Connector | Connector Type | Contact Finish | Usage | Pitch - Cable | Pitch - Cable | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 2 | IDC | Unshielded | 3 ft | 914.4 mm | 2.54 µm | 100 µin | 16 | Polarizing Key | Multiple Ribbon | 0.1 in | 2.54 mm | Socket to Cable | Tin | Board In | 0.05 " | 1.27 mm | |
CW Industries | 2 | IDC | Unshielded | 3 ft | 914.4 mm | 2.54 µm | 100 µin | 16 | Polarizing Key | 0.1 in | 2.54 mm | Socket to Cable | Tin | Board In | 0.05 " | 1.27 mm | ||
CW Industries | 2 | IDC | Unshielded | 3 ft | 914.4 mm | 2.54 µm | 100 µin | Polarizing Key | 0.1 in | 2.54 mm | Socket to Cable | Tin | Board In | 0.05 " | 1.27 mm | 14 | ||
CW Industries | 2 | IDC | Unshielded | 3 ft | 914.4 mm | 2.54 µm | 100 µin | Polarizing Key | Multiple Ribbon | 0.1 in | 2.54 mm | Socket to Cable | Tin | Board In | 0.05 " | 1.27 mm | 10 | |
CW Industries | 2 | IDC | Unshielded | 3 ft | 914.4 mm | 2.54 µm | 100 µin | Polarizing Key | Multiple Ribbon | 0.1 in | 2.54 mm | Socket to Cable | Tin | Board In | 0.05 " | 1.27 mm | 14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.17 | |
| 10 | $ 6.26 | |||
| 25 | $ 5.65 | |||
| 50 | $ 5.24 | |||
| 100 | $ 4.86 | |||
| 250 | $ 4.42 | |||
| 500 | $ 4.12 | |||
| 1000 | $ 3.85 | |||
| 2500 | $ 3.56 | |||
Description
General part information
C1CXS-1 Series

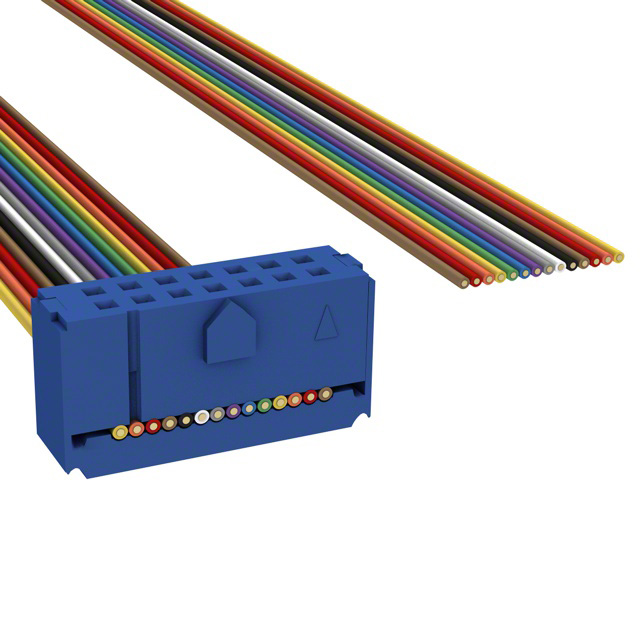

14 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
