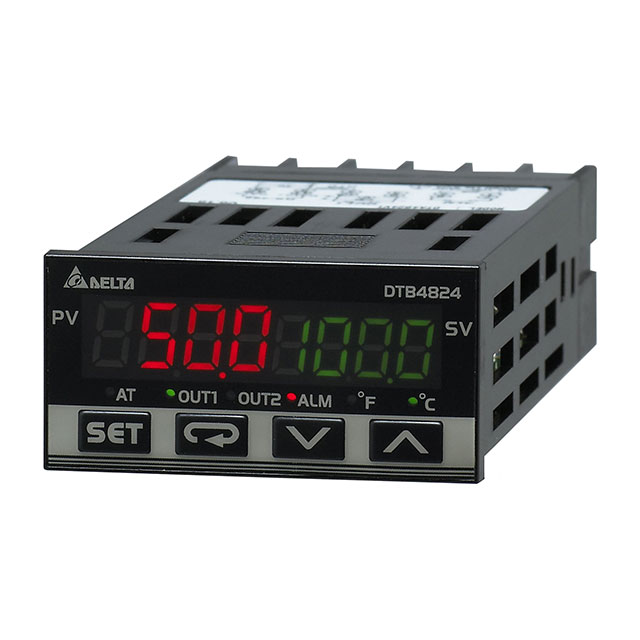

DTB4824LR

Delta Electronics/Industrial Automation

DELTA TEMPERATURE CONTROLLER DTB

Deep-Dive with AI

Search across all available documentation for this part.

DTB4824LR

Delta Electronics/Industrial Automation

DELTA TEMPERATURE CONTROLLER DTB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DTB4824LR	DTB4824 Series

Communications	RS-485 (Modbus)	RS-485 (Modbus)
Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Display Type	LED - Dual Color Characters	LED - Dual Color Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Input Range [Max]	20 mA, 50 mV, 10 V, 1800 °C	10 - 1800 mA
Input Range [Min]	0 A, 0 V, -328 °F	-328 - 0 A
Number of Characters Per Row	4	4
Number of Characters Per Row	4	4
Output Type	Relay, Analog	Relay (2), Voltage (External SSR) (2), Relay, Analog
Panel Cutout Dimensions [x]	45 mm	45 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)
Voltage - Supply	-	24 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

DTB4824 Series

DELTA TEMPERATURE CONTROLLER DTB

Part	Termination Style	Ingress Protection	Control Method	Input Range [Max]	Input Range [Min]	Display Type	Output Type	Communications	Number of Characters Per Row	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Voltage - Supply
Delta Electronics/Industrial Automation DTB4824RR	Screw Terminal	IP65 - Dust Tight, Water Resistant	On/Off, Proportional (PID)	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	LED - Dual Color Characters	Relay (2)	RS-485 (Modbus)	4	4	100 VAC	240 VAC	45 mm	22 mm	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)
Delta Electronics/Industrial Automation DTB4824RR-D	Screw Terminal	IP65 - Dust Tight, Water Resistant	On/Off, Proportional (PID)	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	LED - Dual Color Characters	Relay (2)	RS-485 (Modbus)	4	4			45 mm	22 mm	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	24 VDC
Delta Electronics/Industrial Automation DTB4824VV	Screw Terminal	IP65 - Dust Tight, Water Resistant	On/Off, Proportional (PID)	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	LED - Dual Color Characters	Voltage (External SSR) (2)	RS-485 (Modbus)	4	4	100 VAC	240 VAC	45 mm	22 mm	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)
Delta Electronics/Industrial Automation DTB4824LR	Screw Terminal	IP65 - Dust Tight, Water Resistant	On/Off, Proportional (PID)	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	LED - Dual Color Characters	Analog, Relay	RS-485 (Modbus)	4	4	100 VAC	240 VAC	45 mm	22 mm	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 79.31

Description

General part information

DTB4824 Series

Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) 100 ~ 240VAC Panel Mount

Documents

Technical documentation and resources

No documents available
