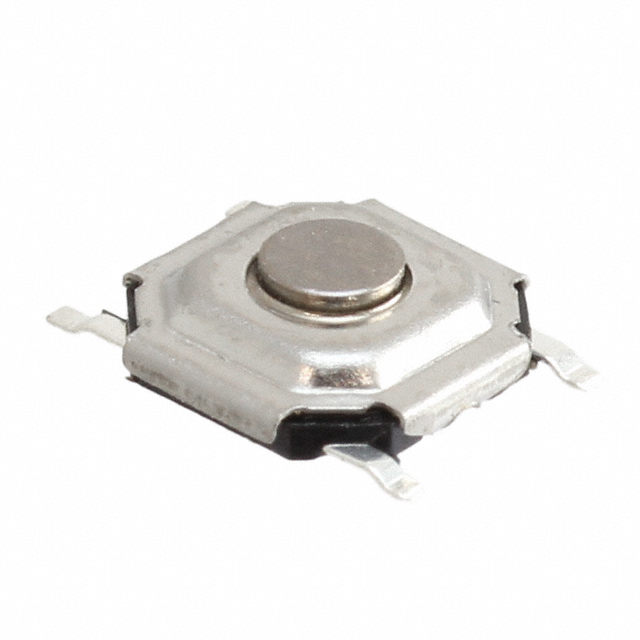

FSMCTTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.02A 15V
Deep-Dive with AI
Search across all available documentation for this part.
FSMCTTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.02A 15V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSMCTTR |
|---|---|
| Actuator Height off PCB, Vertical [z] | 1.5 mm |
| Actuator Material | Aluminum Copper Alloy |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage [x] | 0.02 A, 15 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Outline [x] | 5 mm |
| Outline [y] | 5 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.55 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 4000 | $ 0.59 | ||
| 8000 | $ 0.55 | |||
| 12000 | $ 0.53 | |||
Description
General part information
FSMC Series
Tactile Switch SPST-NO Top Actuated Surface Mount
