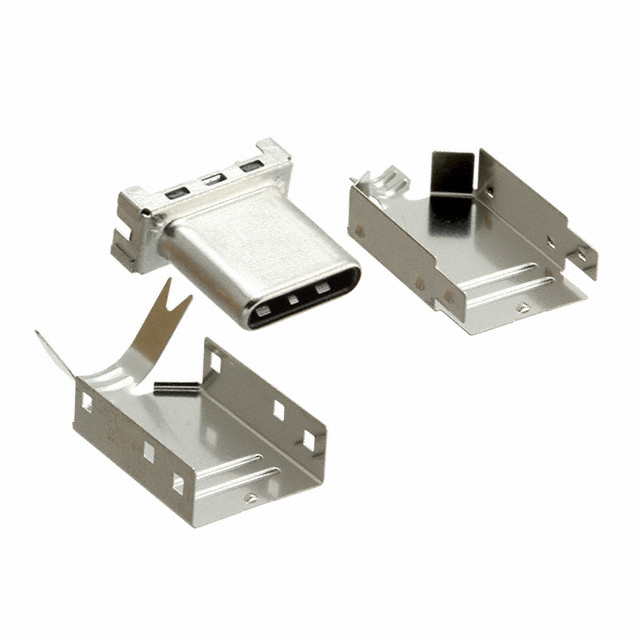

C-BW30-AK5V50

Obsolete

CnC Tech, LLC

CONN PLUG USB3.1 TYPEC 24POS SLD

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CONN PLUG USB3.1 TYPEC 24POS SLD

Technical Specifications

Parameters and characteristics for this part

Specification	C-BW30-AK5V50

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Gender	Plug
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Contacts	24
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

CONN PLUG USB3.1 TYPEC 24POS SLD

Part	Connector Type	Insulation Color	Specifications	Termination	Shell/Shielding Material	Number of Ports	Contact Finish	Mounting Type	Material Flammability Rating	Gender	Number of Contacts
CnC Tech, LLC C-BW30-AK5V50	USB-C (USB TYPE-C)	Black	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	Stainless, Steel	1	Gold	Free Hanging (In-Line)	UL94 V-0	Plug	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Free Hanging (In-Line)
