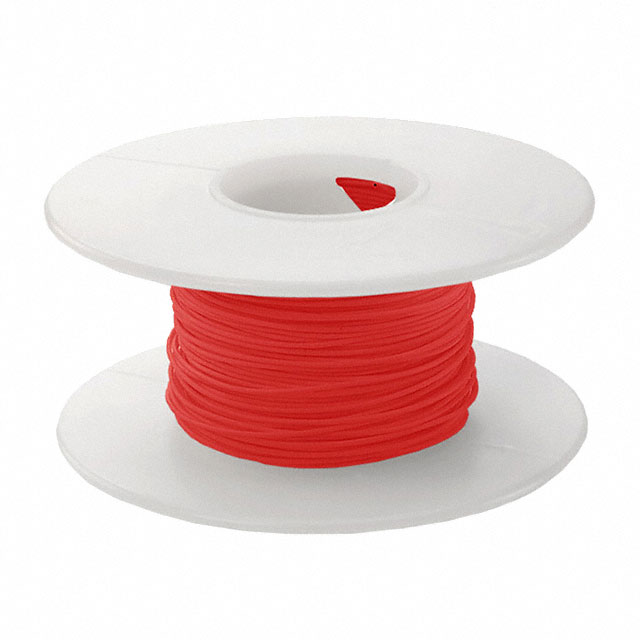

KSW28R-0100

Obsolete

OK INDUSTRIES

WIRE 28AWG RED 100 FT CSW

Search across all available documentation for this part.

Obsolete

OK INDUSTRIES

WIRE 28AWG RED 100 FT CSW

Technical Specifications

Parameters and characteristics for this part

Specification	KSW28R-0100

Conductor Diameter [diameter]	0.32 mm
Conductor Diameter [diameter]	0.013 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.024 in
Jacket (Insulation) Diameter [diameter]	0.61 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket Color	Red
Length	30.5 m
Length [x]	100 ft
Ratings	UL Style 1423
Wire Gauge	28 AWG

Part	Length [x]	Length	Ratings	Conductor Plating	Jacket (Insulation) Material	Wire Gauge	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color
OK INDUSTRIES KSW28R-0100	100 ft	30.5 m	UL Style 1423	Silver	Polyvinylidene Fluoride (PVDF)	28 AWG	0.32 mm	0.013 in	Copper Bare	0.024 in	0.61 mm	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Wrap 28 AWG Red Polyvinylidene Fluoride (PVDF) 100' (30.5m)
