JL10-8A22-22SE-EB

Active

JAE Electronics

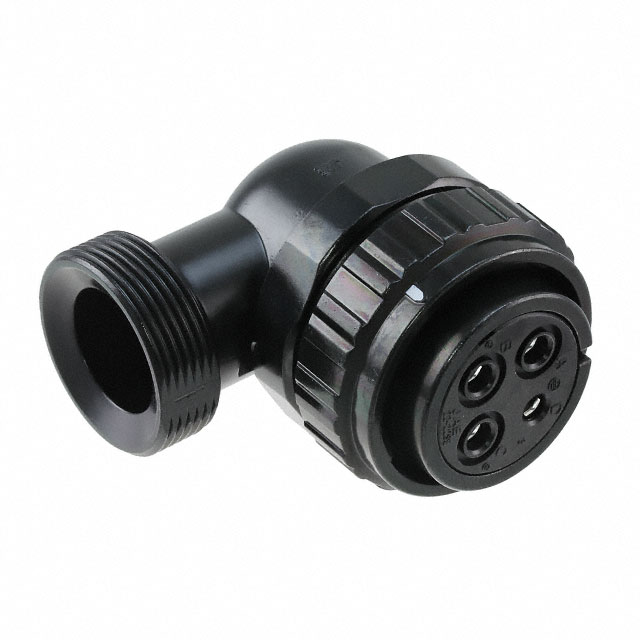

CONN PLUG FMALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JL10-8A22-22SE-EB

Applications	Industrial, Test Equipment & Measurement, Communication Systems
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell, Ground, Rotatable, Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	22
Shell Size - Insert [Min]	22

Part	Features	Color	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Finish - Mating	Insert Material	Connector Type	Number of Positions	Fastening Type	Primary Material	Shell Material	Orientation	Ingress Protection	Applications	Mounting Type	Shell Finish
JAE Electronics JL10-8A22-22SE-EB1	Backshell Coupling Nut Ground Rotatable	Black	Copper Alloy	22	22	Silver	Synthetic Resin	Female Sockets Plug	4	Bayonet Lock	Metal	Aluminum Alloy	N	IP67 - Dust Tight Waterproof	Communication Systems Industrial Test Equipment & Measurement	Free Hanging (In-Line) Right Angle	Zinc
JAE Electronics JL10-8A22-22SE-EB	Backshell Coupling Nut Ground Rotatable	Black	Copper Alloy	22	22	Silver	Synthetic Resin	Female Sockets Plug	4	Bayonet Lock	Metal	Aluminum Alloy	N	IP67 - Dust Tight Waterproof	Communication Systems Industrial Test Equipment & Measurement	Free Hanging (In-Line) Right Angle	Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
