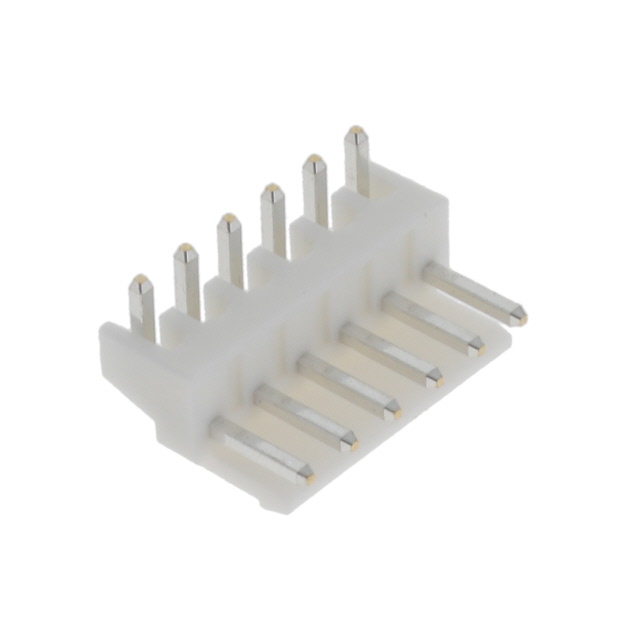

S6P-VH

Active

JST Sales America Inc.

CONN HEADER R/A 6POS 3.96MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 6POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	S6P-VH

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions Loaded	Voltage Rating	Number of Rows	Contact Length - Post	Contact Length - Post	Number of Positions	Fastening Type	Insulation Material	Termination	Material Flammability Rating	Contact Shape	Contact Type	Contact Material	Insulation Height	Insulation Height	Insulation Color	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
JST Sales America Inc. S6P-VH	Shrouded - 1 Wall	7.7 mm	0.303 in	Tin	All	250 VDC	1	3.6 mm	0.142 in	6	Locking Ramp	Polyamide (PA66) Nylon 6/6	Solder	UL94 V-0	Square	Male Pin	Brass	0.335 "	8.51 mm	Natural	10 A	0.156 in	3.96 mm	Header	Board to Cable/Wire	-25 °C	85 °C	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm)
