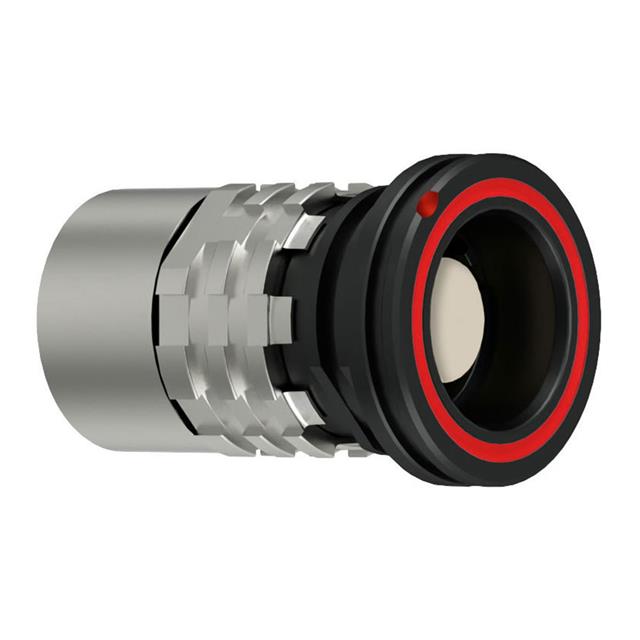

K1CWBC-P04LBC0-0000

Active

ODU

CONN RCPT FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN RCPT FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	K1CWBC-P04LBC0-0000

Applications	Medical, Industrial, Military
Cable Opening [custom]	5 mm
Cable Opening [custom]	0.197 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	B
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	00
Shielding	Shielded
Voltage Rating	300 VDC

Part	Primary Material	Ingress Protection	Shell Size - Insert	Voltage Rating	Shell Material	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Orientation	Shielding	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Shell Finish	Connector Type	Applications	Color
ODU K1CWBC-P04LBC0-0000	Metal	IP68 - Dust Tight Waterproof	00	300 VDC	Brass	5 mm	0.197 in	Detent Lock Push-Pull	B	Shielded	Backshell	Free Hanging (In-Line)	-51 °C	125 °C	4	Gold	Chrome	Receptacle Female Sockets	Industrial Medical Military	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.94

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
