1405027-2

Active

TE Connectivity AMP Connectors

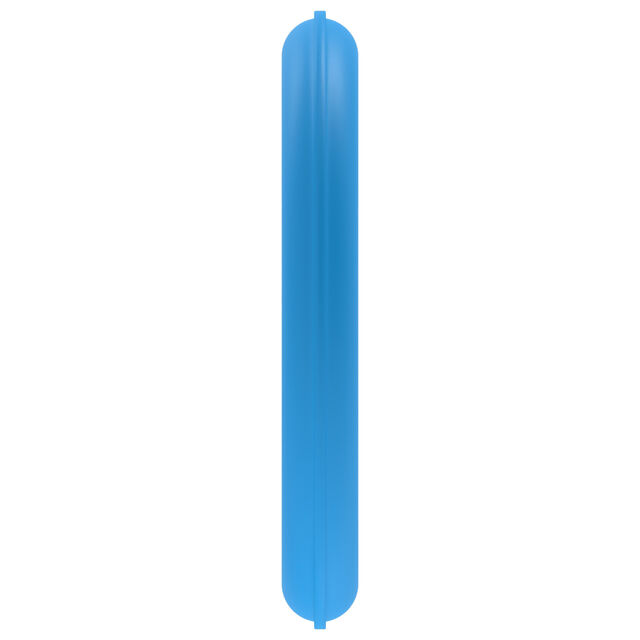

CONN O-RING FOR OSP CONNECTORS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN O-RING FOR OSP CONNECTORS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector O-Ring For OSP Connectors

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1405027-2	1405 Series

Accessory Type	O-Ring	O-Ring
Body Material	Flourosilicone	Flourosilicone, Nitrile
Color	Blue	Blue, Black
Connector Style	OSP	OSP
Contact Finish	-	Tin
Contact Material	-	Brass
For Use With/Related Products	OSP Connectors	OSP Connectors
Gender	-	Male
Insulation	-	Non-Insulated
Insulation Diameter	-	2.5 mm
Insulation Diameter	-	3.61 mm
Insulation Diameter	-	0.098 in
Insulation Diameter	-	0.142 in
Length - Overall	-	0.724 in
Length - Overall	-	18.4 mm
Length - Overall	-	19.89 mm
Length - Overall	-	0.783 in
Mounting Type	-	Board, Chassis, Free Hanging (In-Line)
Tab Length	-	0.311 in
Tab Length	-	7.9 mm
Tab Thickness	-	0.032 in
Tab Thickness	-	0.81 mm
Tab Width	-	6.35 mm
Tab Width	-	0.25 in
Terminal Type	-	Offset, Circular, Angled - 90°
Termination	-	Rivet, Screw, Stud, Crimp
Thickness	-	0.024 - 0.031 in
Thickness	-	0.61 - 0.79 mm
Width - Outer Edges	-	8.69 mm
Width - Outer Edges	-	0.342 in
Width - Outer Edges	-	0.343 in
Width - Outer Edges	-	8.71 mm
Wire Gauge	-	11 - 14 AWG
Wire Gauge	-	14 - 18 AWG

CONN QC TAB 0.250

Part	Insulation	Tab Thickness	Tab Thickness	Termination	Length - Overall	Length - Overall	Mounting Type	Tab Width	Tab Width	Tab Length	Tab Length	Contact Material	Gender	Contact Finish	Terminal Type	For Use With/Related Products	Accessory Type	Connector Style	Body Material	Color	Thickness	Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]
TE Connectivity AMP Connectors 140596	Non-Insulated	0.032 in	0.81 mm	Rivet, Screw, Stud	0.724 in	18.4 mm	Board, Chassis	6.35 mm	0.25 in	0.311 in	7.9 mm	Brass	Male	Tin	Offset
TE Connectivity AMP Connectors 140595	Non-Insulated	0.032 in	0.81 mm	Rivet, Screw, Stud	0.724 in	18.4 mm	Board, Chassis	6.35 mm	0.25 in	0.311 in	7.9 mm	Brass	Male		Offset
TE Connectivity AMP Connectors 1405027-2																OSP Connectors	O-Ring	OSP	Flourosilicone	Blue
TE Connectivity AMP Connectors 140530	Non-Insulated			Crimp			Free Hanging (In-Line)					Brass		Tin	Circular						0.024 in	0.61 mm	14 AWG	18 AWG	8.69 mm	0.342 in	19.89 mm	0.783 in
TE Connectivity AMP Connectors 140593	Non-Insulated	0.032 in	0.81 mm	Rivet, Screw, Stud			Board, Chassis	6.35 mm	0.25 in	0.311 in	7.9 mm	Brass	Male		Angled - 90°
TE Connectivity AMP Connectors 1405027-1																OSP Connectors	O-Ring	OSP	Nitrile	Black
TE Connectivity AMP Connectors 140538	Non-Insulated			Crimp			Free Hanging (In-Line)					Brass		Tin	Circular						0.031 in	0.79 mm	11 AWG	14 AWG					0.343 in	8.71 mm	2.5 mm	3.61 mm	0.098 in	0.142 in
