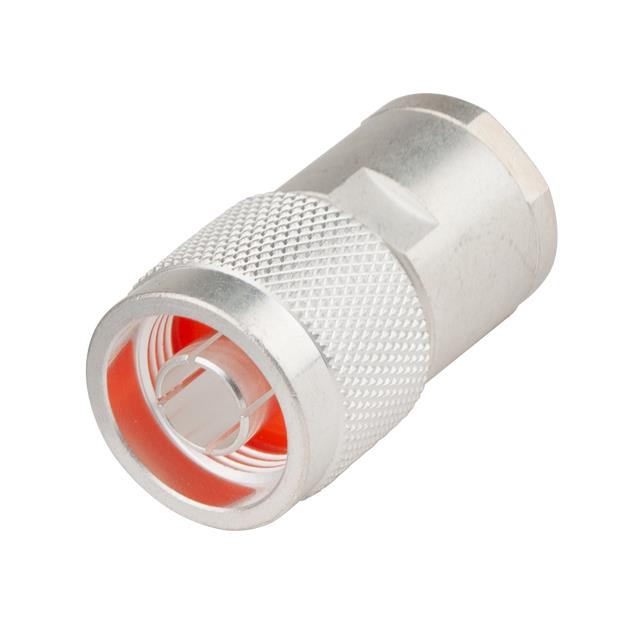

RFN-1002-1S

Active

RF Industries

1 NTYPE HEADER 11GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS

Search across all available documentation for this part.

Active

RF Industries

1 NTYPE HEADER 11GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1002-1S

Body Finish	Silver
Body Material	Brass
Cable Group	RG-8, 213, 8A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp
Voltage Rating	1000 VDC

1 NTYPE HEADER 11GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS

Part	Voltage Rating	Body Finish	Connector Type	Frequency - Max [Max]	Cable Group	Body Material	Center Contact Material	Center Contact Plating	Contact Termination	Dielectric Material	Impedance	Mounting Type	Connector Style	Number of Ports	Insertion Loss	Housing Color	Shield Termination
RF Industries RFN-1002-1S	1000 VDC	Silver	Male Pin, Plug	11 GHz	213, 8A, RG-8	Brass	Brass	Gold	Solder	Polytetrafluoroethylene (PTFE)	50 Ohms	Free Hanging (In-Line)	N Type	1	0.2 dB	Silver	Clamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
