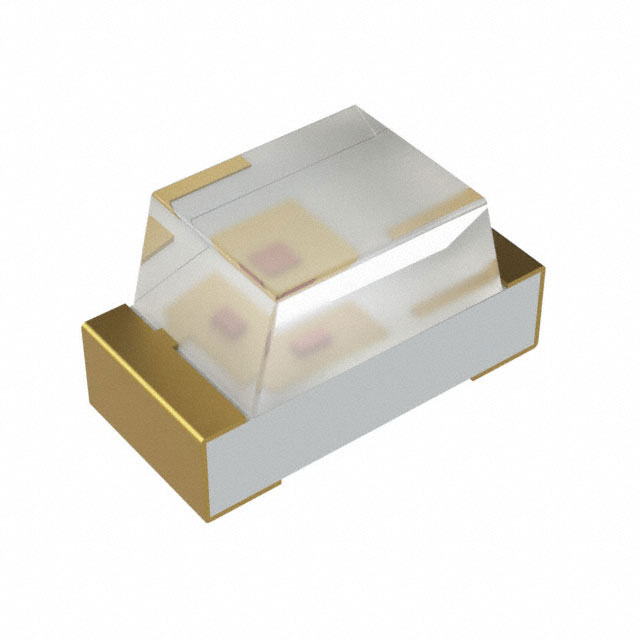

IN-S63DTPT

Active

Inolux

TOP VIEW / 0603 / 1.6X0.8X0.88

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IN-S63DTPT

Active

Inolux

TOP VIEW / 0603 / 1.6X0.8X0.88

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.29
		10	$ 0.16
		100	$ 0.10
		500	$ 0.08
		1000	$ 0.07
		2000	$ 0.06
	Digi-Reel®	1	$ 0.29
		10	$ 0.16
		100	$ 0.10
		500	$ 0.08
		1000	$ 0.07
		2000	$ 0.06
	Tape & Reel (TR)	4000	$ 0.06
		8000	$ 0.05
		12000	$ 0.05
		20000	$ 0.05
		28000	$ 0.05
		40000	$ 0.05
		100000	$ 0.04
		200000	$ 0.04

Description

General part information

IN-S63 Series

Phototransistors 940nm Top View 0603 (1608 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IN-S63DTPT	IN-S63 Series

Color	-	Red, Yellow, Amber, Blue, Yellow-Green
Configuration	-	Standard
Current - Collector (Ic) (Max) [Max]	20 mA	20 mA
Current - Dark (Id) (Max) [Max]	100 nA	100 nA
Current - DC Forward (If) (Max)	-	65 mA
Current - Test	-	5 - 20 mA
Height (Max)	-	0.6 mm
Height (Max)	-	0.4 mm
Lens Color	-	Colorless
Lens Size	-	0.6 - 0.8 mm
Lens Size	-	1.15 - 1.2 mm
Lens Style	-	Rectangle with Flat Top
Lens Transparency	-	Clear
Millicandela Rating	-	11.5 - 150 mcd
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	0603 (1608 Metric)	0603 (1608 Metric), 2-SMD, No Lead
Power - Max [Max]	150 mW	150 mW
Radiant Intensity (Ie) Min @ If	-	0.8 mW/sr
Size / Dimension	-	1.6 - 1.7 mm
Size / Dimension	-	0.8 - 1.1 mm
Type	-	Infrared (IR)
Viewing Angle	-	120 - 140 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V	35 V
Voltage - Forward (Vf) (Typ)	-	1.25 - 2.9 V
Wavelength	940 nm	940 nm
Wavelength - Dominant	-	467 - 622 nm
Wavelength - Peak	-	468 - 630 nm

IN-S63 Series

TOP VIEW / 0603 / 1.6X0.8X0.66

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Orientation	Viewing Angle	Type	Mounting Type	Voltage - Forward (Vf) (Typ)	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Package / Case	Lens Transparency	Wavelength - Peak	Color	Configuration	Height (Max) [Max]	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Current - Test	Lens Size [y]	Lens Size [x]	Lens Style	Lens Color	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Height (Max) [Max] [z]
Inolux IN-S63FTHIR	85 °C	-40 °C	65 mA	Top View	140 °	Infrared (IR)	Surface Mount	1.25 V	940 nm	0.8 mW/sr	0603 (1608 Metric)
Inolux IN-S63ASR					120 °		Surface Mount, Right Angle	2.2 V			2-SMD, No Lead	Clear	630 nm	Red	Standard	0.6 mm	150 mcd	1.7 mm	1.1 mm	622 nm	20 mA	0.6 mm	1.2 mm	Rectangle with Flat Top	Colorless
Inolux IN-S63AS5Y					120 °		Surface Mount, Right Angle	2 V			2-SMD, No Lead	Clear	590 nm	Yellow	Standard	0.6 mm	30 mcd	1.7 mm	1.1 mm	588 nm	5 mA	0.6 mm	1.2 mm	Rectangle with Flat Top	Colorless
Inolux IN-S63DTHIR	85 °C	-40 °C	65 mA	Top View	140 °	Infrared (IR)	Surface Mount	1.25 V	940 nm	0.8 mW/sr	0603 (1608 Metric)
Inolux IN-S63BTA					120 °		Surface Mount	2 V			0603 (1608 Metric)	Clear	609 nm	Amber	Standard	0.6 mm	140 mcd	1.6 mm	0.8 mm	605 nm	20 mA	0.8 mm	1.2 mm	Rectangle with Flat Top	Colorless
Inolux IN-S63AS5B					120 °		Surface Mount, Right Angle	2.9 V			2-SMD, No Lead	Clear	468 nm	Blue	Standard	0.6 mm	80 mcd	1.7 mm	1.1 mm	467 nm	5 mA	0.6 mm	1.2 mm	Rectangle with Flat Top	Colorless
Inolux IN-S63DTPT	85 °C	-40 °C		Top View			Surface Mount		940 nm		0603 (1608 Metric)															20 mA	150 mW	35 V	100 nA
Inolux IN-S63AT5YG					120 °		Surface Mount	2 V			0603 (1608 Metric)	Clear		Yellow-Green	Standard		11.5 mcd	1.6 mm	0.8 mm	573 nm	5 mA	0.8 mm	1.15 mm	Rectangle with Flat Top	Colorless					0.4 mm
