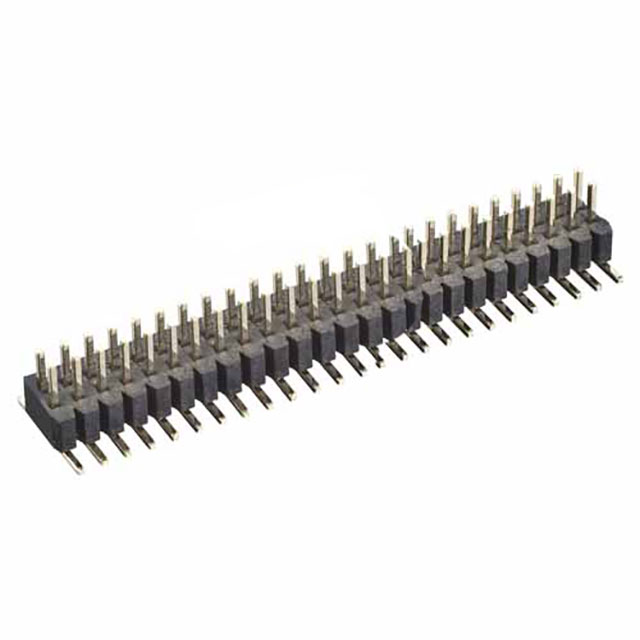

M40-3202545R
ActiveHarwin Inc.
BOARD CONNECTOR, 50 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, BLACK INSULATOR, RECEPTACLE, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
M40-3202545R
ActiveHarwin Inc.
BOARD CONNECTOR, 50 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, BLACK INSULATOR, RECEPTACLE, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M40-3202545R |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Mating | 1.8 mm |
| Contact Length - Mating | 0.071 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Board Guide |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Polyamide (PA6T), Glass Filled, Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
M40-320 Series
| Part | Mounting Type | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Number of Positions | Contact Material | Pitch - Mating | Pitch - Mating | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Termination | Contact Finish - Mating | Number of Positions Loaded | Contact Finish Thickness - Mating | Fastening Type | Features | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insulation Material | Contact Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Surface Mount | UL94 V-0 | 1.8 mm | 0.071 in | 1.5 mm | 0.059 " | 20 | Brass | 0.039 in | 1 mm | Unshrouded | 0.039 " | 1 mm | Square | Solder | Gold | All | Flash | Push-Pull | Board Guide Pick and Place | Black | -40 °C | 105 ░C | Header | Glass Filled Nylon 6T Polyamide (PA6T) | Male Pin | 2 |
Harwin Inc. | Surface Mount | UL94 V-0 | 1.8 mm | 0.071 in | 1.5 mm | 0.059 " | 8 | Brass | 0.039 in | 1 mm | Unshrouded | 0.039 " | 1 mm | Square | Solder | Gold | All | Flash | Push-Pull | Board Guide Pick and Place | Black | -40 °C | 105 ░C | Header | Glass Filled Nylon 6T Polyamide (PA6T) | Male Pin | 2 |
Harwin Inc. | Surface Mount | UL94 V-0 | 1.8 mm | 0.071 in | 1.5 mm | 0.059 " | 6 | Brass | 0.039 in | 1 mm | Unshrouded | 0.039 " | 1 mm | Square | Solder | Gold | All | Flash | Push-Pull | Board Guide Pick and Place | Black | -40 °C | 105 ░C | Header | Glass Filled Nylon 6T Polyamide (PA6T) | Male Pin | 2 |
Harwin Inc. | Surface Mount | UL94 V-0 | 1.8 mm | 0.071 in | 1.5 mm | 0.059 " | 50 | Brass | 0.039 in | 1 mm | Unshrouded | 0.039 " | 1 mm | Square | Solder | Gold | All | Flash | Push-Pull | Board Guide Pick and Place | Black | -40 °C | 105 ░C | Header | Glass Filled Nylon 6T Polyamide (PA6T) | Male Pin | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M40-320 Series
Connector Header Surface Mount 50 position 0.039" (1.00mm)
