787395-5

Active

TE Connectivity AMP Connectors

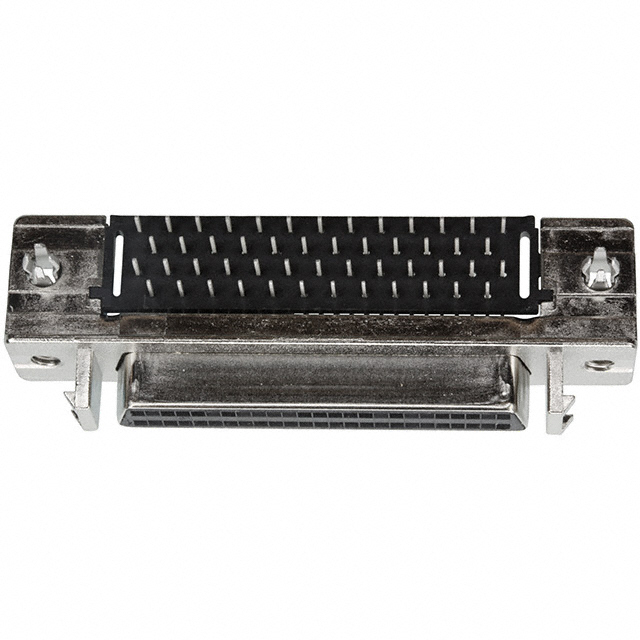

CONN D-TYPE RCPT 50POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	787395-5

Backset Spacing	3.71 mm
Backset Spacing	0.146 in
Color	Black
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40), Latchblocks
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Solder
Voltage Rating	30 VDC

CONN D-TYPE RCPT 50POS R/A SLDR

Part	Voltage Rating	Features	Backset Spacing	Backset Spacing	Color	Connector Style	Shell Material, Finish	Contact Finish	Material Flammability Rating	Number of Positions	Mounting Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Type	Termination	Dielectric Material	Number of Rows	Flange Feature	Connector Type
TE Connectivity AMP Connectors 787395-5	30 VDC	Board Lock, Shielded	3.71 mm	0.146 in	Black	D-Type	Nickel Plated, Steel	Gold	UL94 V-0	50	Board Edge, Right Angle, Through Hole	0.05	0.1	105 ░C	-55 °C	Phosphor Bronze	Signal	Solder	Thermoplastic	2	Housing/Shell (4-40), Latchblocks	Receptacle, Female Sockets
