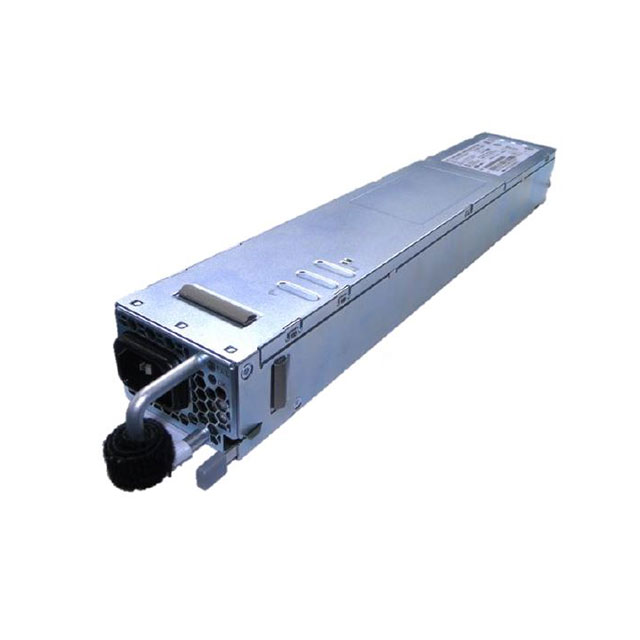

PFE1300-48-054NA

Active

Bel Power Solutions

AC/DC CONVERTER 48V 1300W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 48V 1300W

Technical Specifications

Parameters and characteristics for this part

Specification	PFE1300-48-054NA

Applications	ITE (Commercial)
Approval Agency	cCSAus, NEMKO, CB, CE
Current - Output 1	26.8 A
Efficiency	94 %
Features	Remote On/Off, Standby Output, I2C Interface, PMBus™, Adjustable Output, Remote Sense, Load Sharing, PFC, Hot Swappable
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1.3 kW
Size / Dimension [x]	12.66 in
Size / Dimension [x]	321.5 mm
Size / Dimension [y]	2.15 "
Size / Dimension [y]	54.5 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	48 V

AC/DC CONVERTER 48V 1300W

Part	Approval Agency	Type	Current - Output 1	Voltage - Output 1	Efficiency	Voltage - Isolation	Applications	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)
Bel Power Solutions PFE1300-48-054NA	CB, cCSAus, CE, NEMKO	Front End	26.8 A	48 V	94 %	4.242 kV	ITE (Commercial)	Rack Mount	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm	45 °C	0 °C	1	Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output	90 VAC	264 VAC	1.3 kW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 440.00

General part information

Front End AC DC Converters 1 Output 48V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
